Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Current Rating | 1.5 (DC-13) A |
| Depth | 0.118" (3mm) |
| Dimensions | 45 x 99 x 114 mm |
| Family Name | Preventa XPS Safety Automation Family |
| Function | Safety |
| Input Type | Voltage |
| Length | 3.897" (99mm) |
| Maximum Operating Temperature | 55 °C |
| Minimum Operating Temperature | -10 °C |
| Mounting Style | DIN Rail |
| Mounting Type | DIN Rail |
| Number of Channels | 1 Channel |
| Number of Outputs | 4 |
| Power Rating | 180 VA |
| Relay Type | Safety Relay |
| Series | |
| Special Features | Auxiliary Contacts |
| Standards | BIA ; CSA ; DIN V VDE 0801 (1990) ; DIN V VDE 0801 A1 (1994) ; EN 1088 ; EN/IEC 60204-1 ; EN/IEC 60947-5-1 ; EN/IEC 60947-5-3 ; ISO 14119 ; UL |
| Supply Voltage | 24 VDC |
| Temperature Operating Range | -10 to 55 C |
| Terminal Type | Screw Clamp |
| Termination | Screw Clamp |
| Type | Safety Relay |
| UPC Code | 785901344278 |
| Voltage Rating | 24 VAC/VDC |
| Voltage, Control | 24 VDC |
| Width | 0.886" (22.5mm) |
Overview

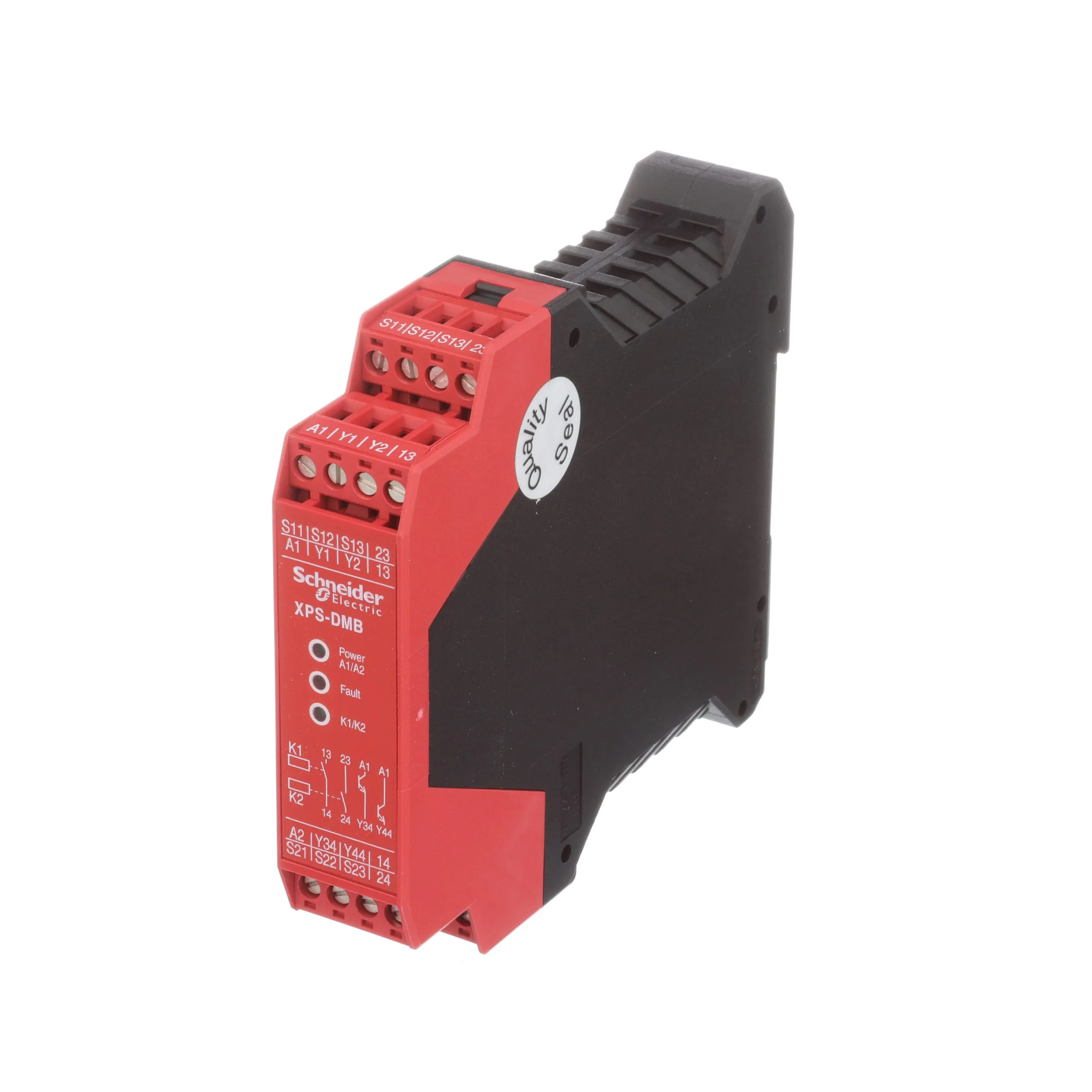

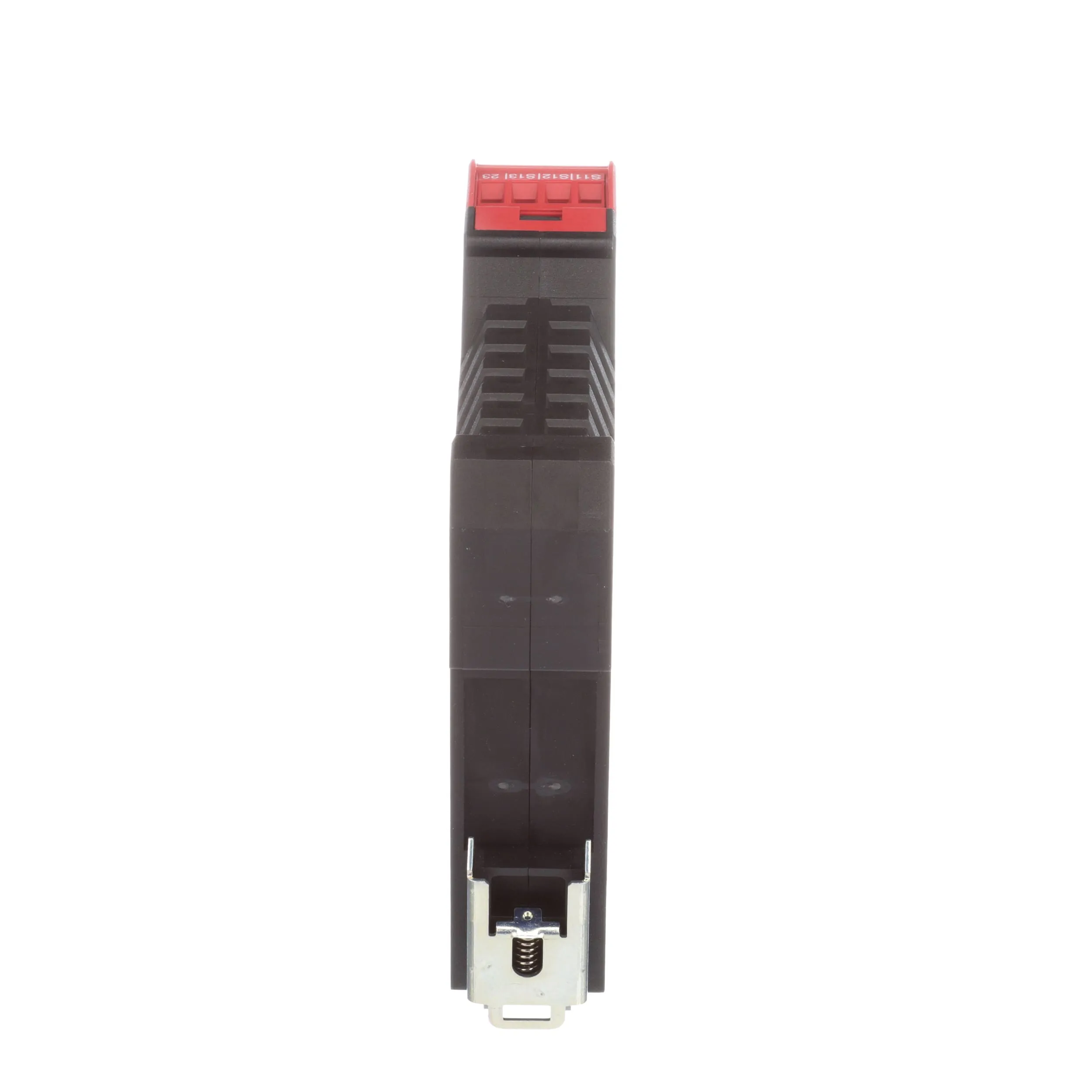

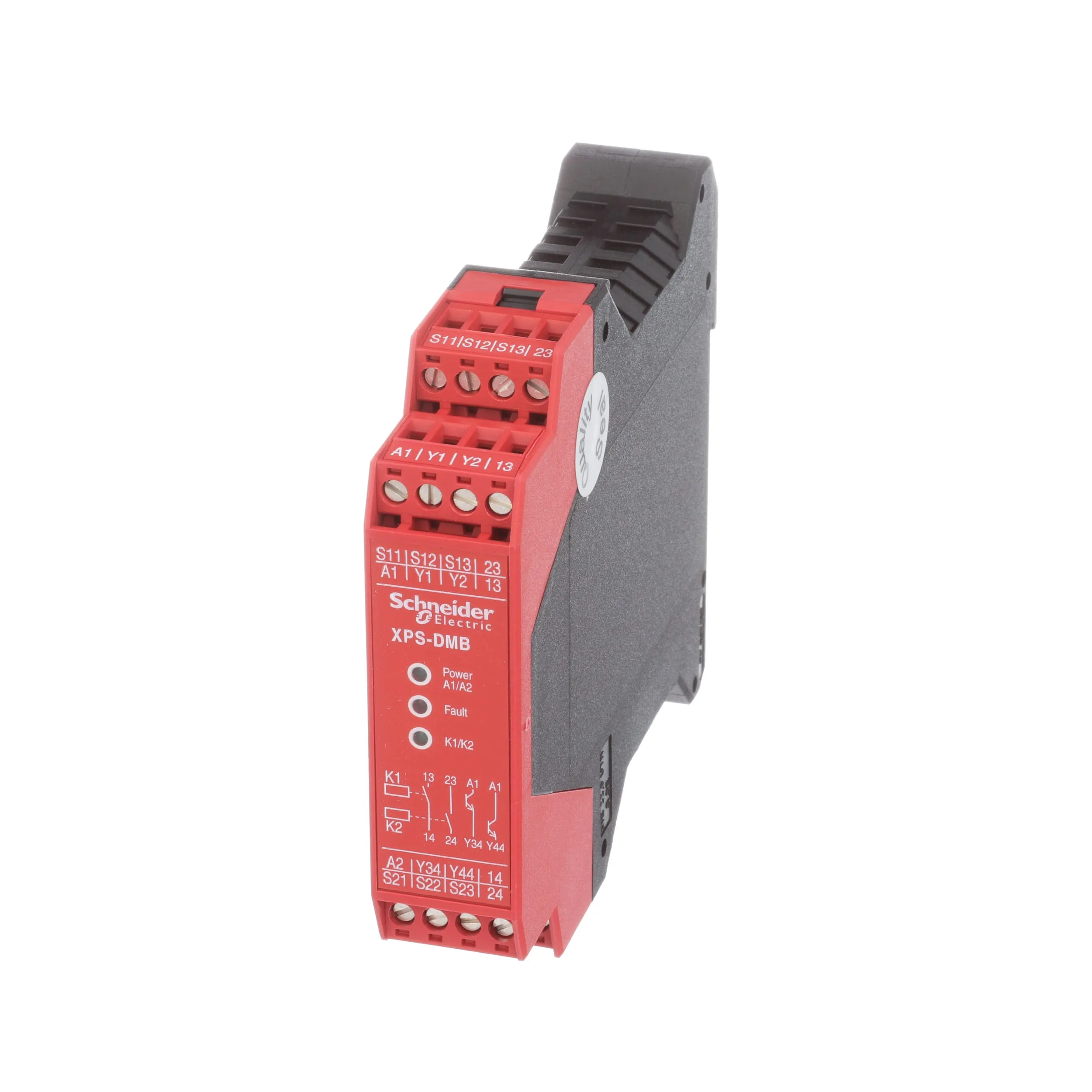

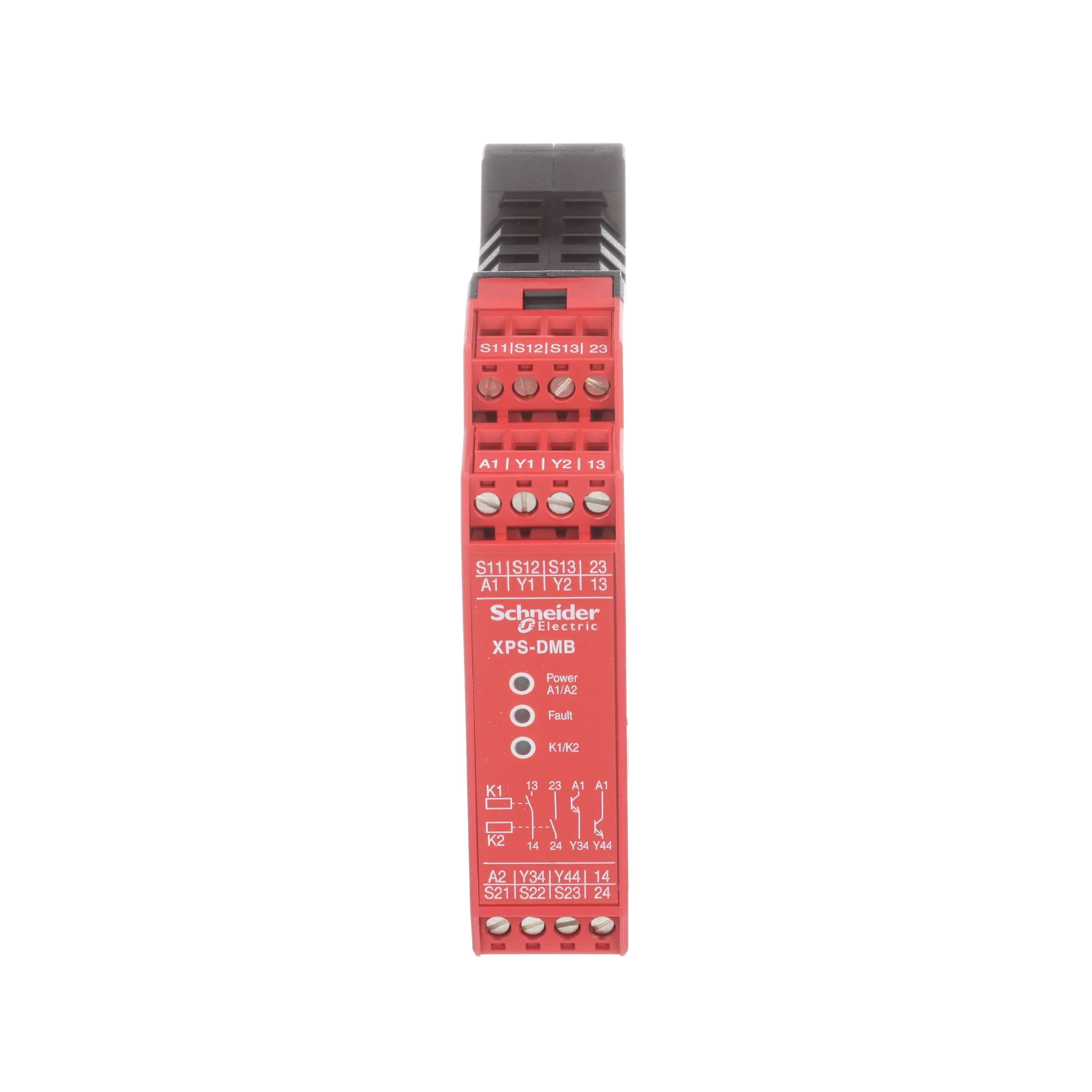

Schneider Electric Preventa XPS-DME Series — For Coded Magnetic Switch Monitoring | Types: XPS-DMB, XPS-DME:
Safety modules XPSDME are specifically designed for monitoring coded magnetic safety switches. They incorporate two safety outputs and two solid-state outputs for signalling to the process PLC. Conforming to Performance Level PL e/Category 4 conforming to EN/ISO 13849-1, modules XPSDME can monitor up to six independent sensors. To monitor a higher number of magnetic switches using these safety modules, the magnetic switches can be connected in series parallel.
XPS-DME Features:
maintenance
status
