Product Details

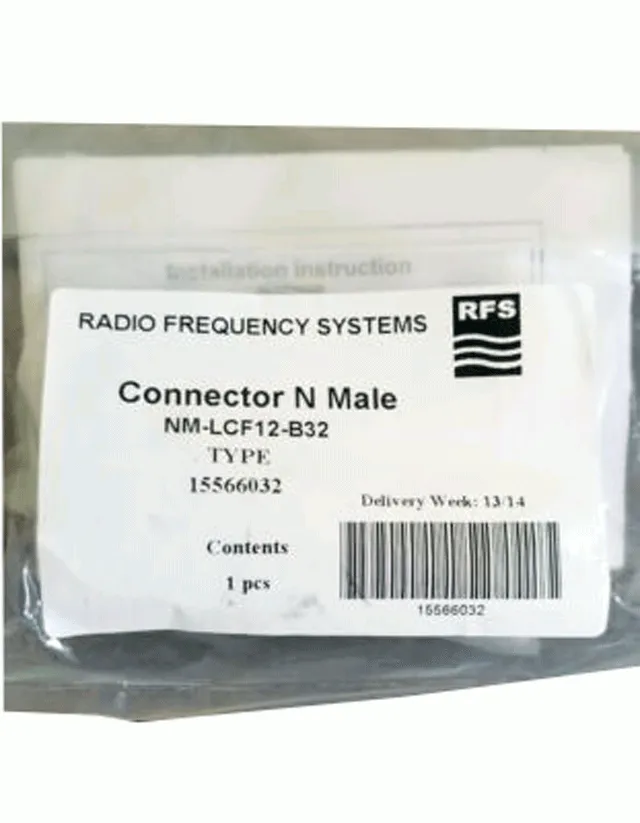

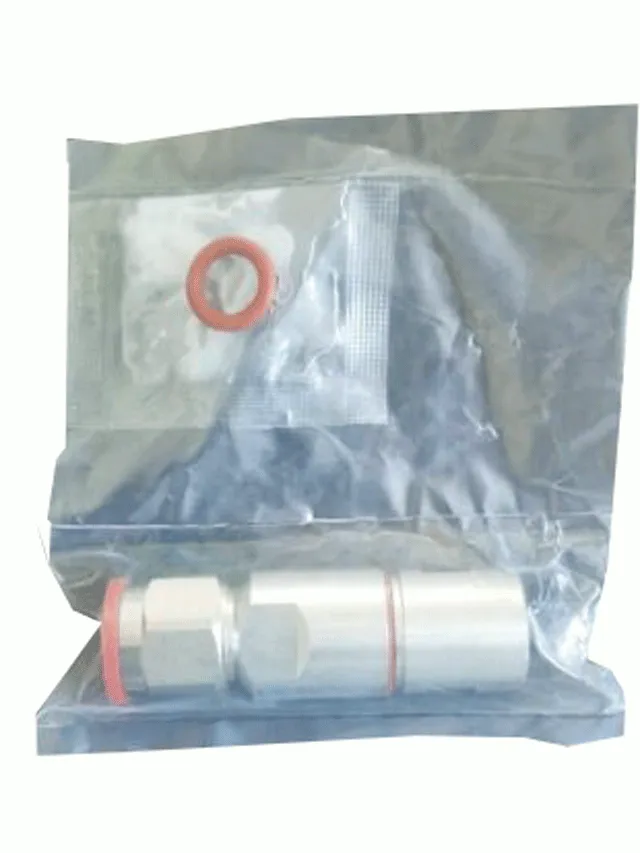

This is a Radio Frequency Systems Connector N Male. It's part number is NM-LCF12-B32 . It comes as pictured without any additional parts or accessories.



Specifications

  • Manufacturer: RFS
  • Part Number: NM-LCF12-B32
  • Transmission Line Type: Coaxial Cable
  • Cable Size: 1/2"
  • Cable Type: Foam Dielectric, Radiating
  • Model Series: LCF12-50 Series, ICA12-50 Series
  • Connector Interface: N
  • Nominal Impedance, ohms: 50
  • Connector Type: OMNI FIT
  • Sealing Method: O-ring
  • Gender: Male
  • Plating Outer/Inner: Three metal/Silver
  • Length, mm (in): 64 (2.52)
  • Outer Diameter, mm (in): 22.4 (0.88)
  • Weight, kg (lb): 0.09 (0.20)
  • Inner Contact Attachment: Spring Finger
  • Outer Contact Attachment: Spring Finger
  • 3rd Order IM Product @ 2x20 Watts, dBc: <-155
  • Maximum Frequency, GHz: 3.7
  • VSWR (Return Loss, dB) for 0 < f ≤ 1.0 GHz: 1.025 (38.2)
  • VSWR (Return Loss, dB) for 1.0 < f ≤ 2.7 GHz: 1.035 (35.3)
  • VSWR (Return Loss, dB) for 2.7 < f ≤ 3.7 GHz: 1.06 (30.7)
  • VSWR (Return Loss, dB) for DC < f ≤ 6.0 GHz: 1.09 (27.3)
  • Wrench size front, mm (in): 19 (3/4)
  • Wrench size rear, mm (in): 19 (3/4)
  • Trimming Tool: TRIM-Series-A
  • Waterproof Level: IP68
Radio Frequency Systems Connector N Male NM-LCF12-B32
  • DefaultTitle

$ 86.52

$ 66.55
