| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Safety Module |
| Alternate Mfr Part Number | IB IL 24 PSDI 8-PAC |
| Application | Interbus Safety & Profibus Safe System |
| Approvals | UL Listed, cUL Listed, Functional Safety, PROFIsafe, Functional Safety, Functional Safety, cULus Listed |
| Current, Supply | 180 mA |
| For Use With | Safety Bridge System |
| Input Type | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 4/8 (Two Channel/One Channel) |
| Primary Type | Safety Module |
| Series | |
| Special Features | Inter Bus Field Bus System, Spring Cage Connection, Overload Protection, Short Circuit Protection |
| Standards | III, IEC 61140, EN 61140, VDE 0140-1, IP20 |
| Supply Voltage | 19.2-30 VDC |
| Type | Safety Module |
| UPC Code | 4046356131582 |
Overview

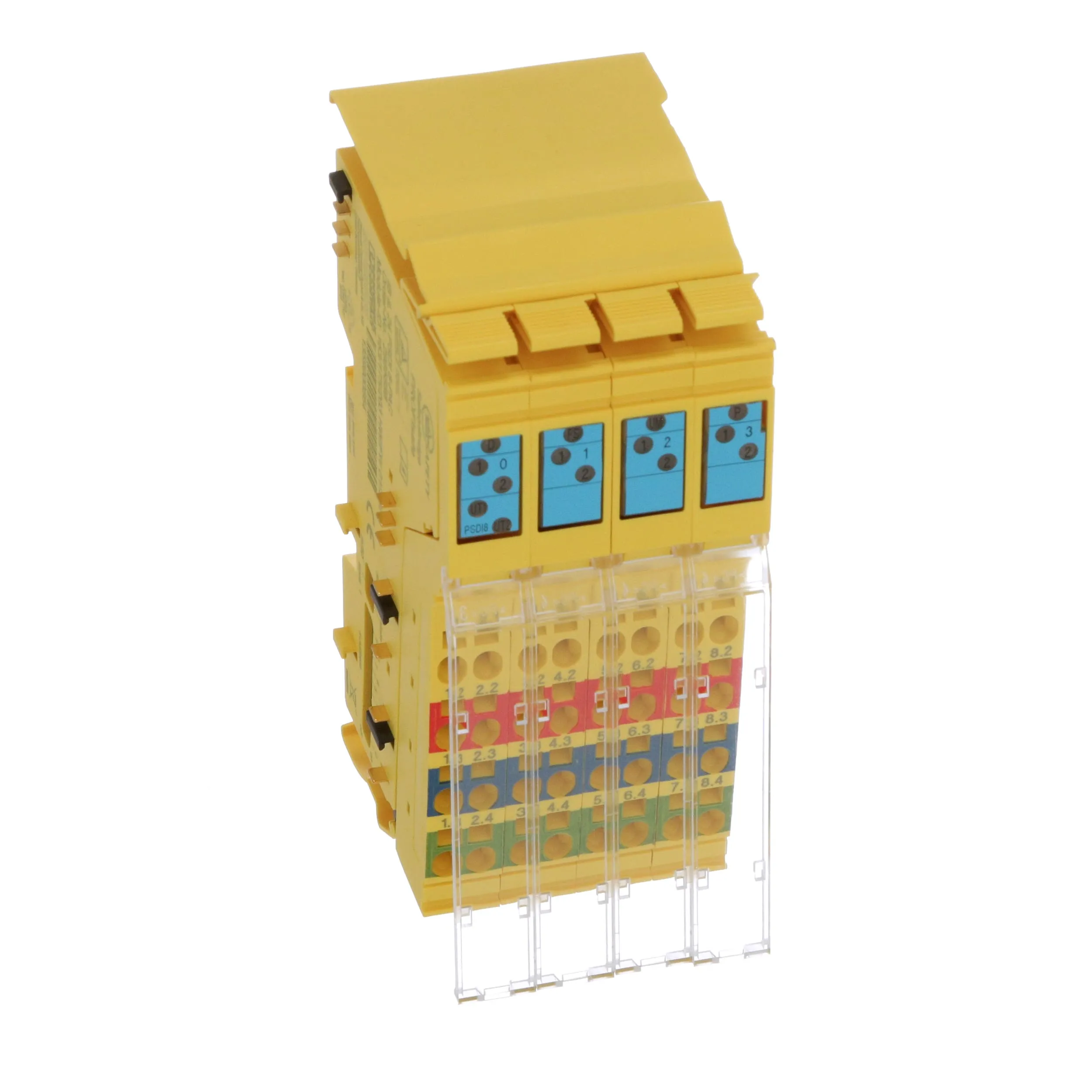

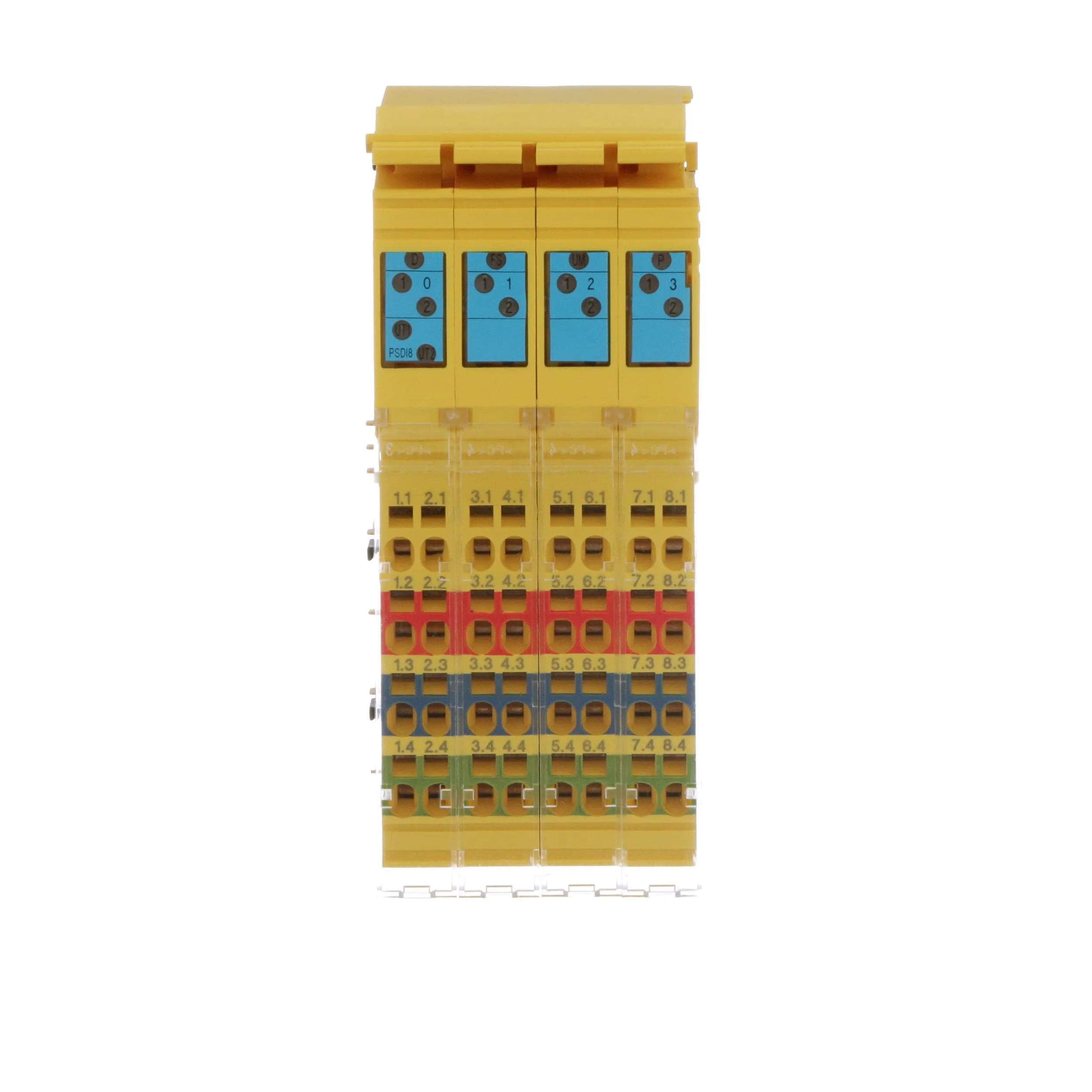

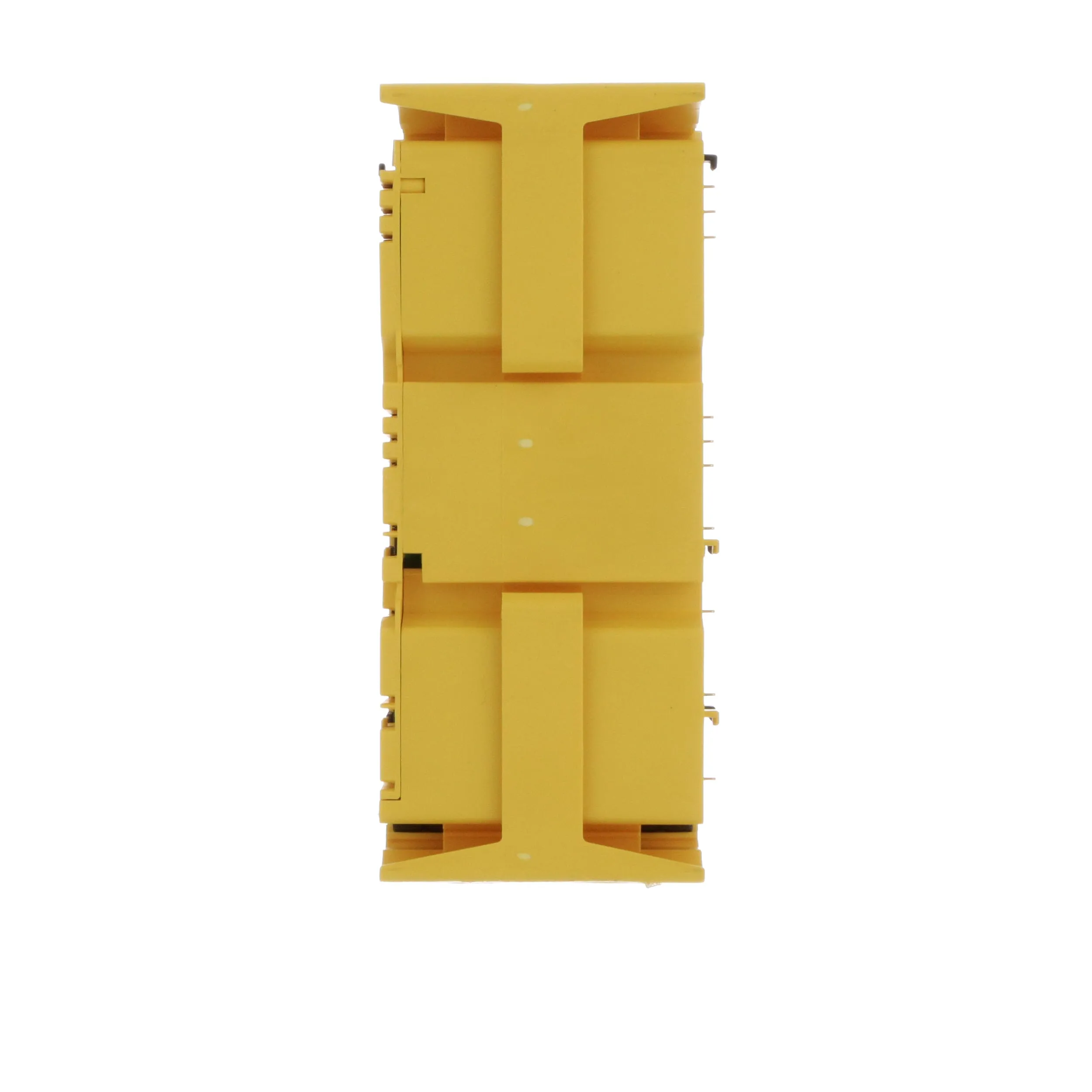

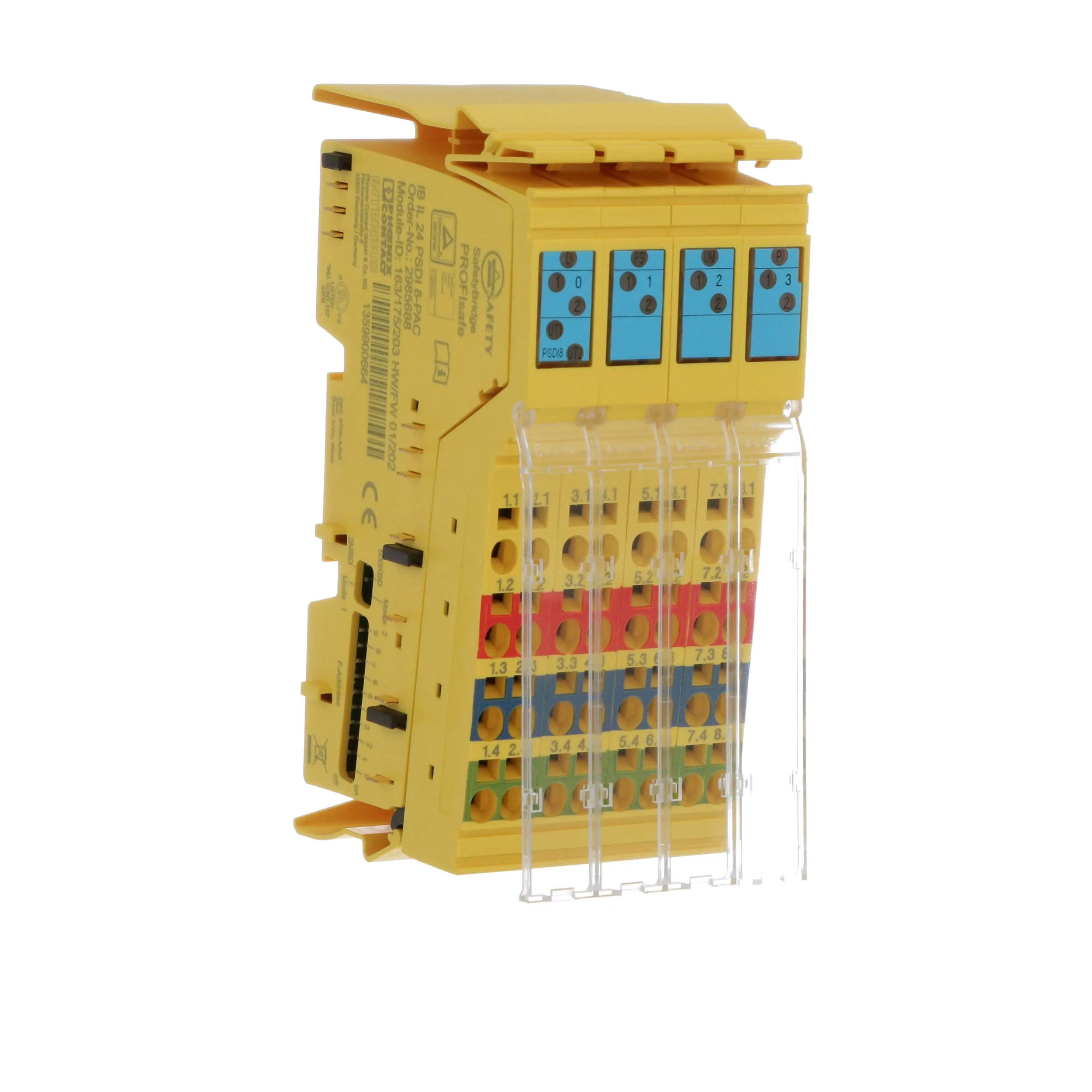

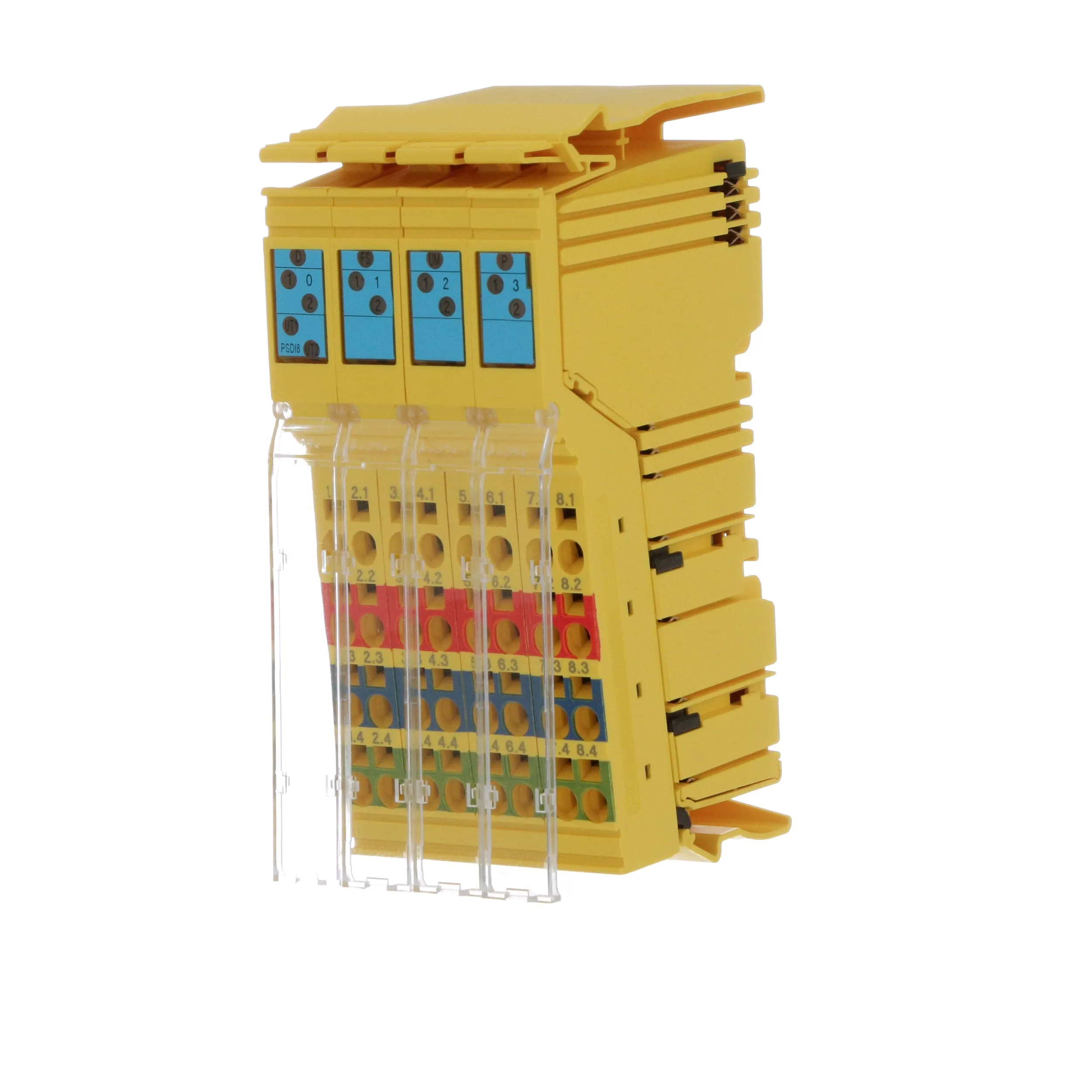

The safety module is an input module from the Inline product range, designed for use in a SafetyBridge, INTERBUS-Safety or PROFIsafe system. The safety module can be used as part of an Inline station at any point within a SafetyBridge, INTERBUS-Safety or PROFIsafe Inline system. The transmission speed of the safety module can be set to 500 kbaud or 2 Mbaud using a switch. Only one transmission speed must be used uniformly within a station. The module has four safe digital inputs for two-channel assignment or eight safe digital inputs for single-channel assignment. The inputs can be parameterized according to the application and enable the integration of sensors in the safe SafetyBridge, INTERBUS (INTERBUS-Safety), and PROFIsafe system. Depending on the installation and parameterization, in these systems the safety module can achieve the following safety integrity:
