| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Safety Digital Output Module |
| Alternate Mfr Part Number | IB IL 24 PSDO 8-PAC |
| Application | Interbus Safety & Profibus Safe System |
| Approvals | Functional Safety, cUL Listed, PROFIBUS, Functional Safety, Functional Safety, cULus Listed |
| Current, Supply | 230 mA |
| For Use With | Safety Bridge System |
| Input Type | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 4 (with Two-Channel Assignment) |
| Number of Outputs | 8 |
| Output Type | Digital |
| Primary Type | Safety Module |
| Series | |
| Special Features | Inter Bus Field Bus System, Spring Cage Connection, Overload Protection, Short Circuit Protection |
| Standards | III, IEC 61140, EN 61140, VDE 0140-1, IP20 Rating |
| Supply Voltage | 19.2-30 VDC |
| Type | Safety Module |
| UPC Code | 4046356131605 |
Overview

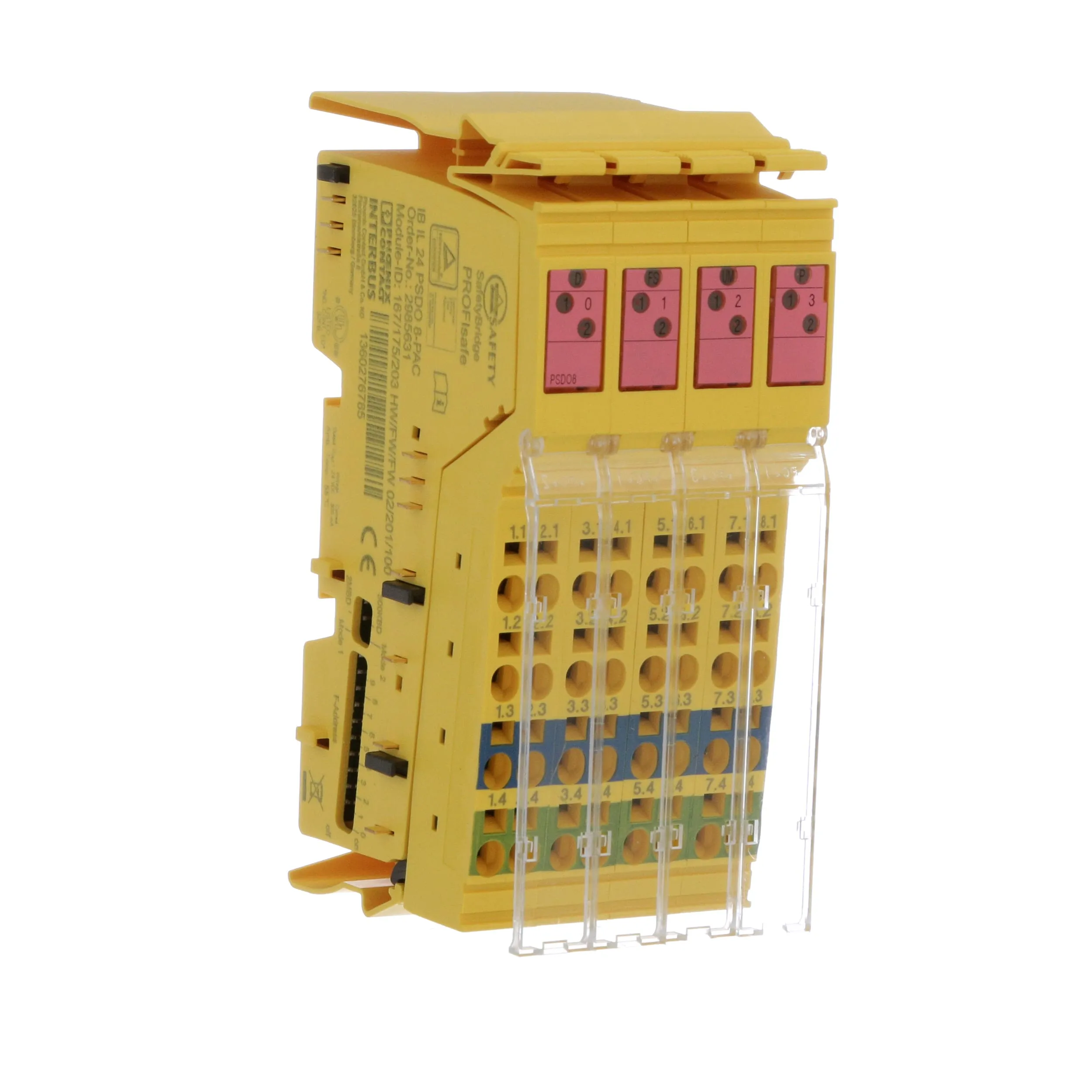

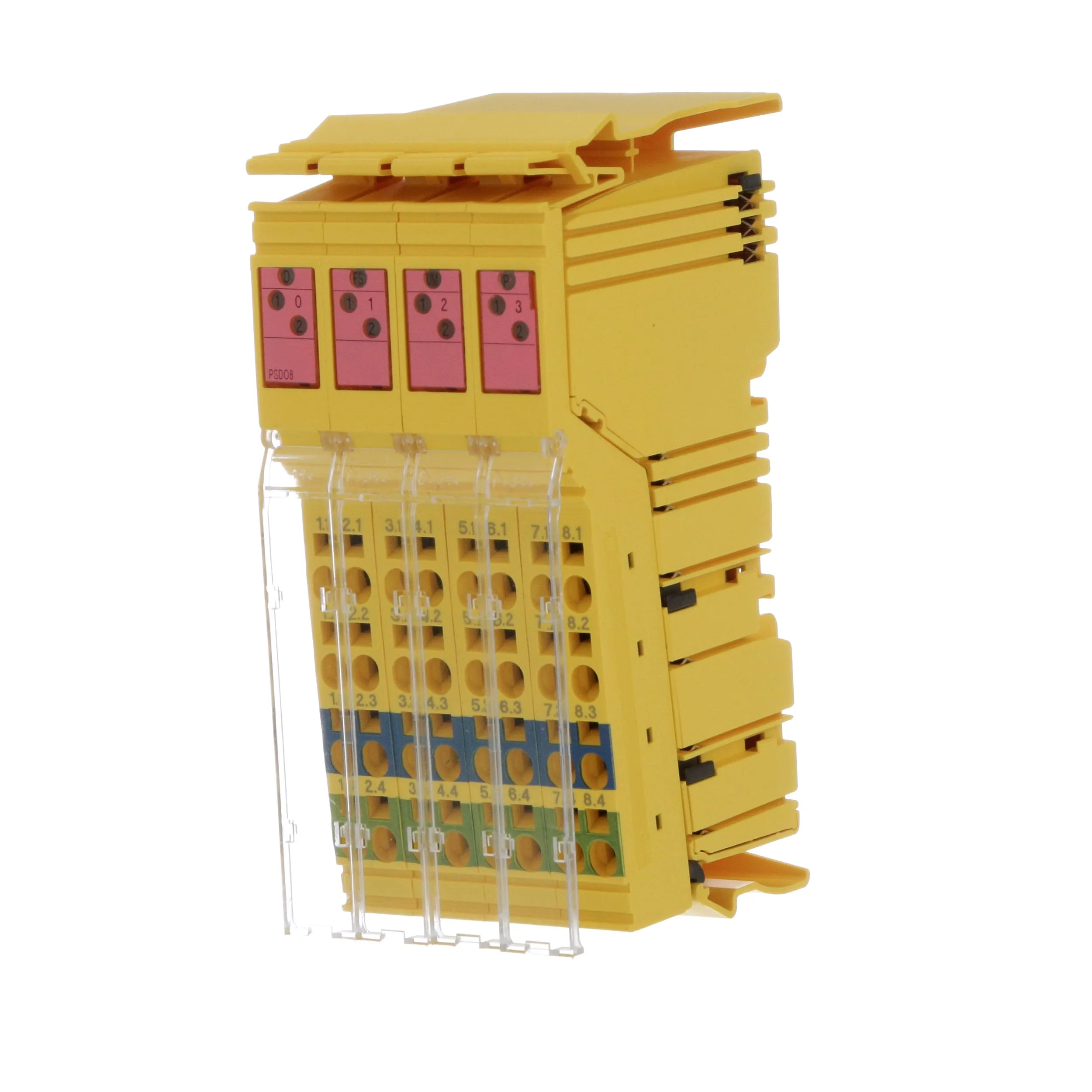

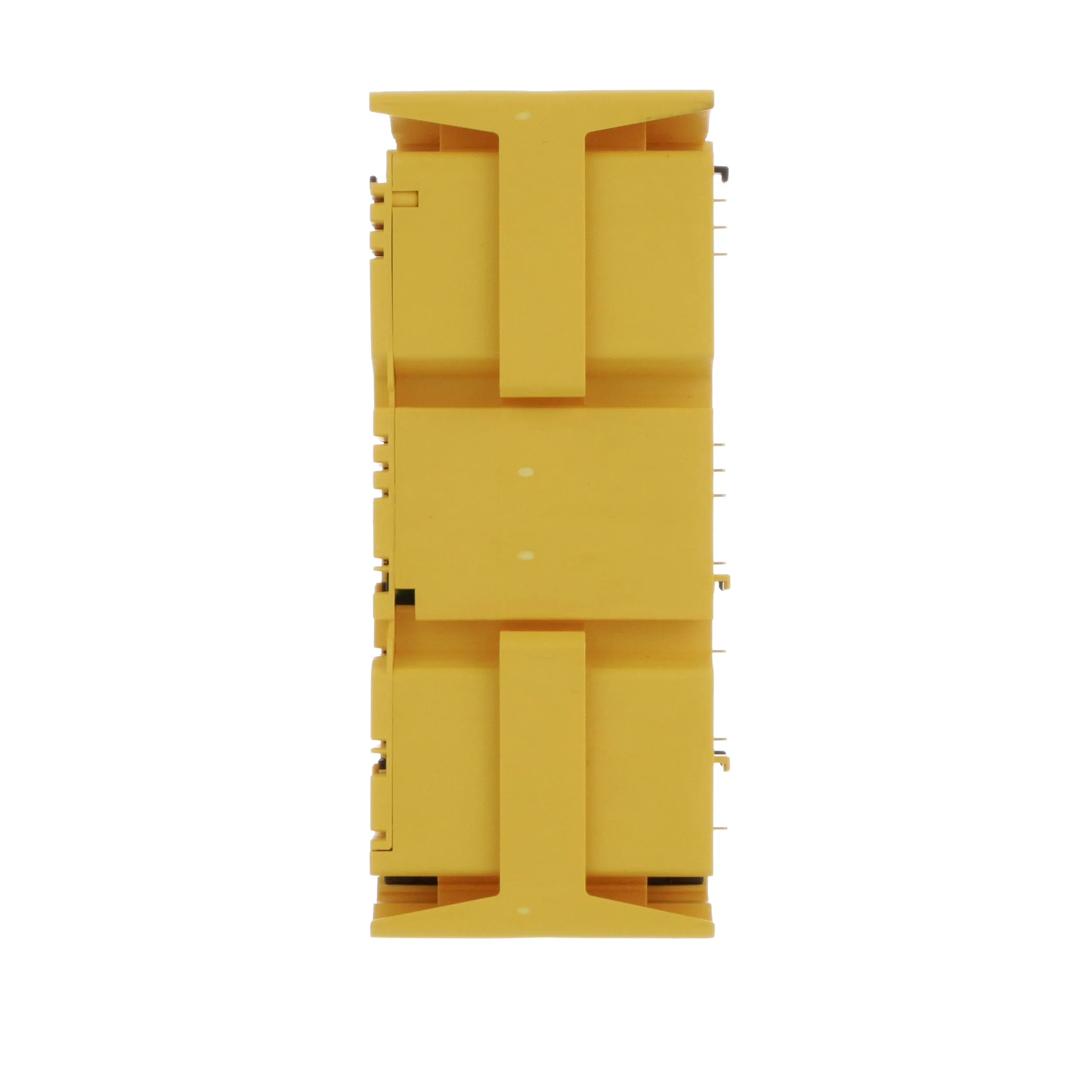

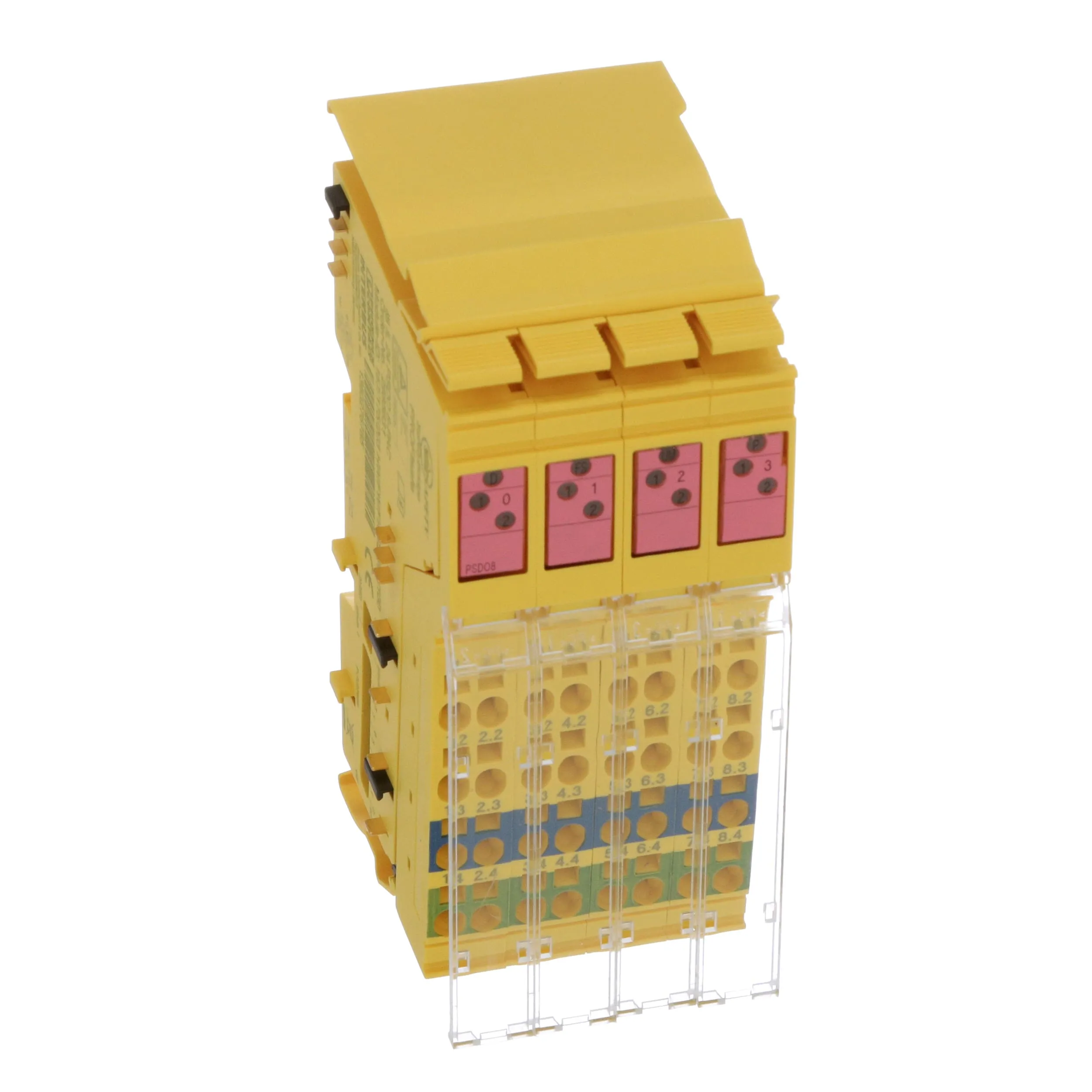

The safety module is an output module from the Inline product range, designed for use in an INTERBUS-Safety or PROFIsafe system. The safety module can be used as part of an Inline station at any point within an INTERBUS-Safety or PROFIsafe Inline system. The transmission speed of the safety module can be set to 500 kbaud or 2 Mbaud using a switch. Only one transmission speed must be used uniformly within a station. The module has four safe digital outputs for two-channel assignment or eight safe digital outputs for single-channel assignment. The outputs can be parameterized according to the application and enable the integration of actuators in the safe INTERBUS system (INTERBUS-Safety) and in the PROFIsafe system. Depending on the installation and parameterization, in these systems the safety module can achieve the following safety integrity:
