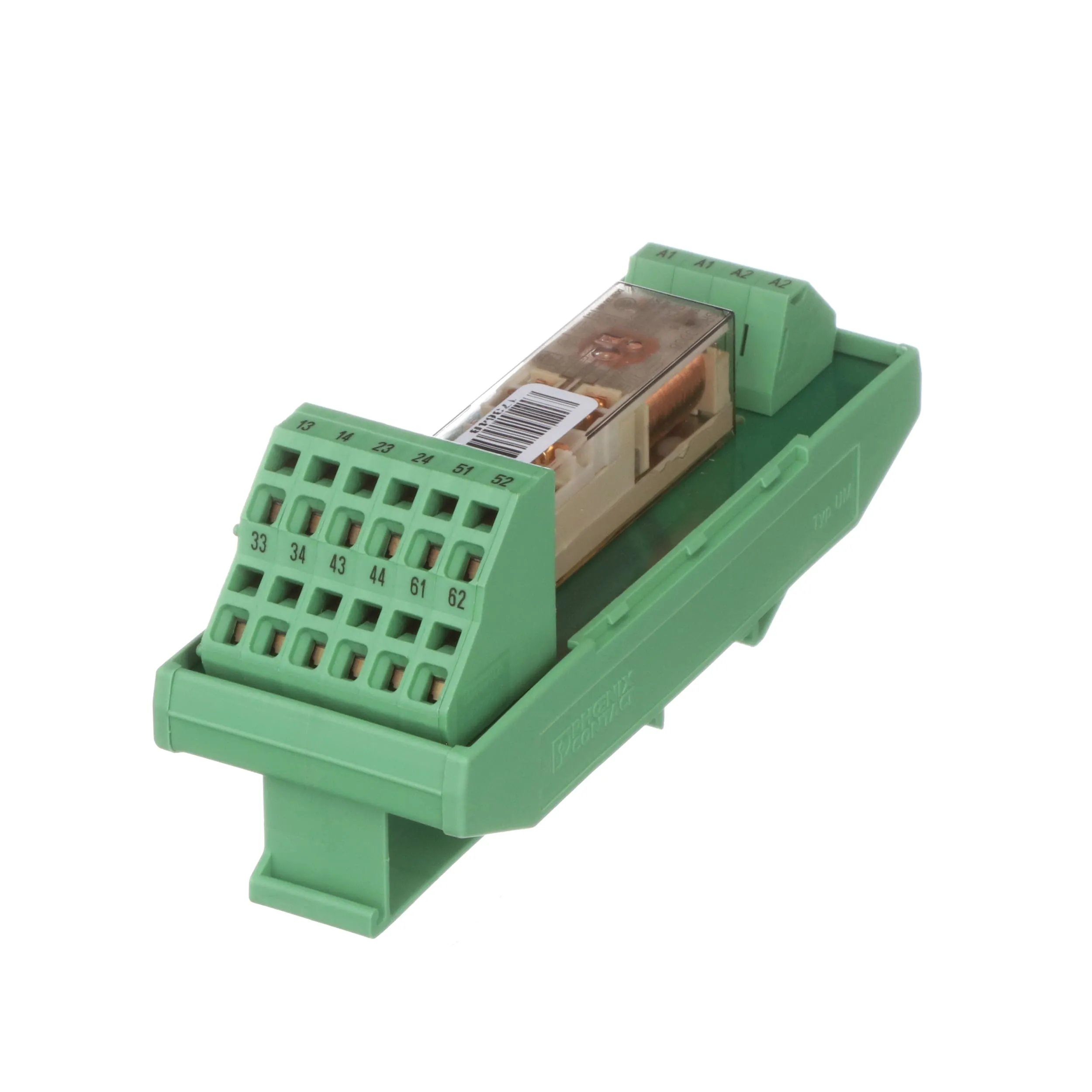

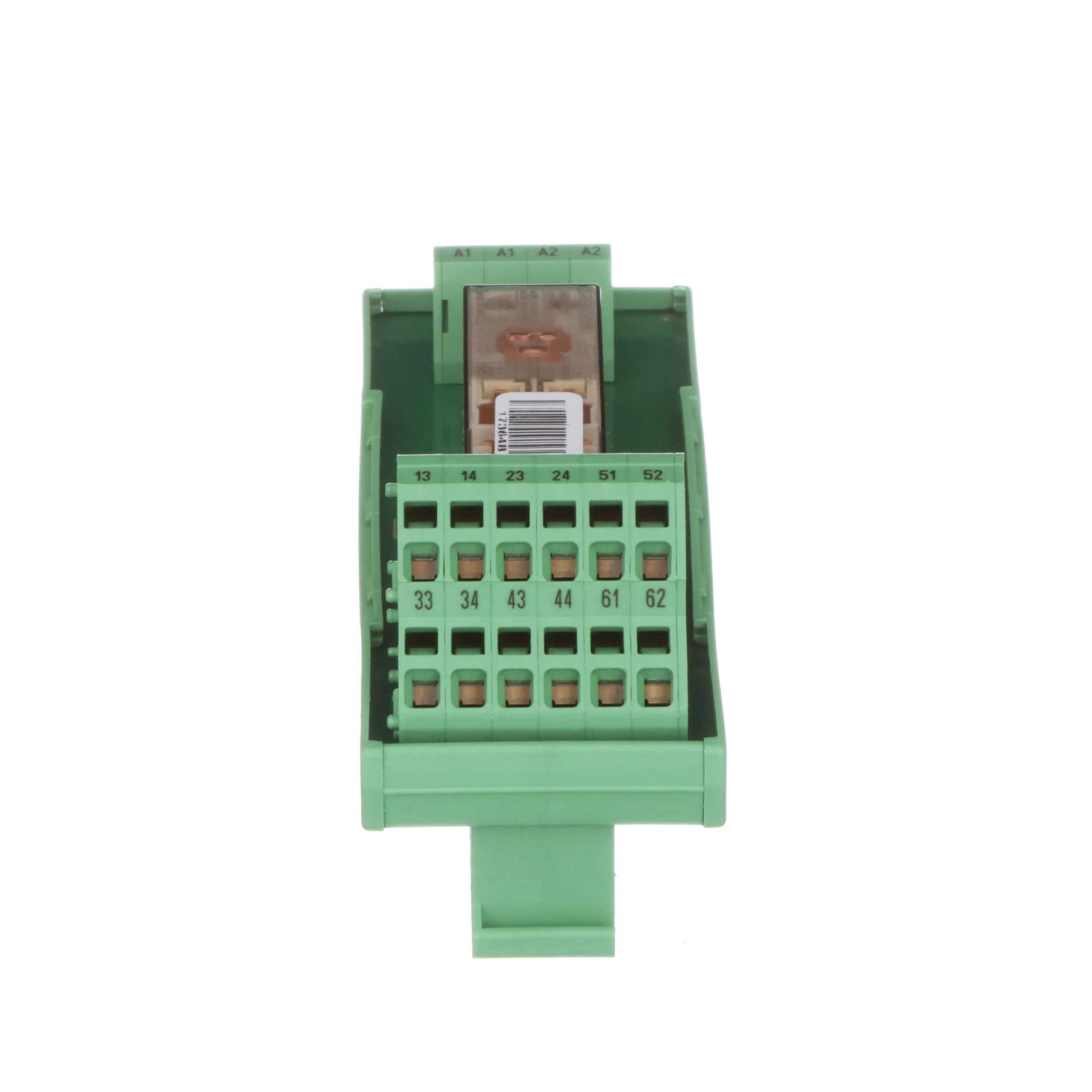

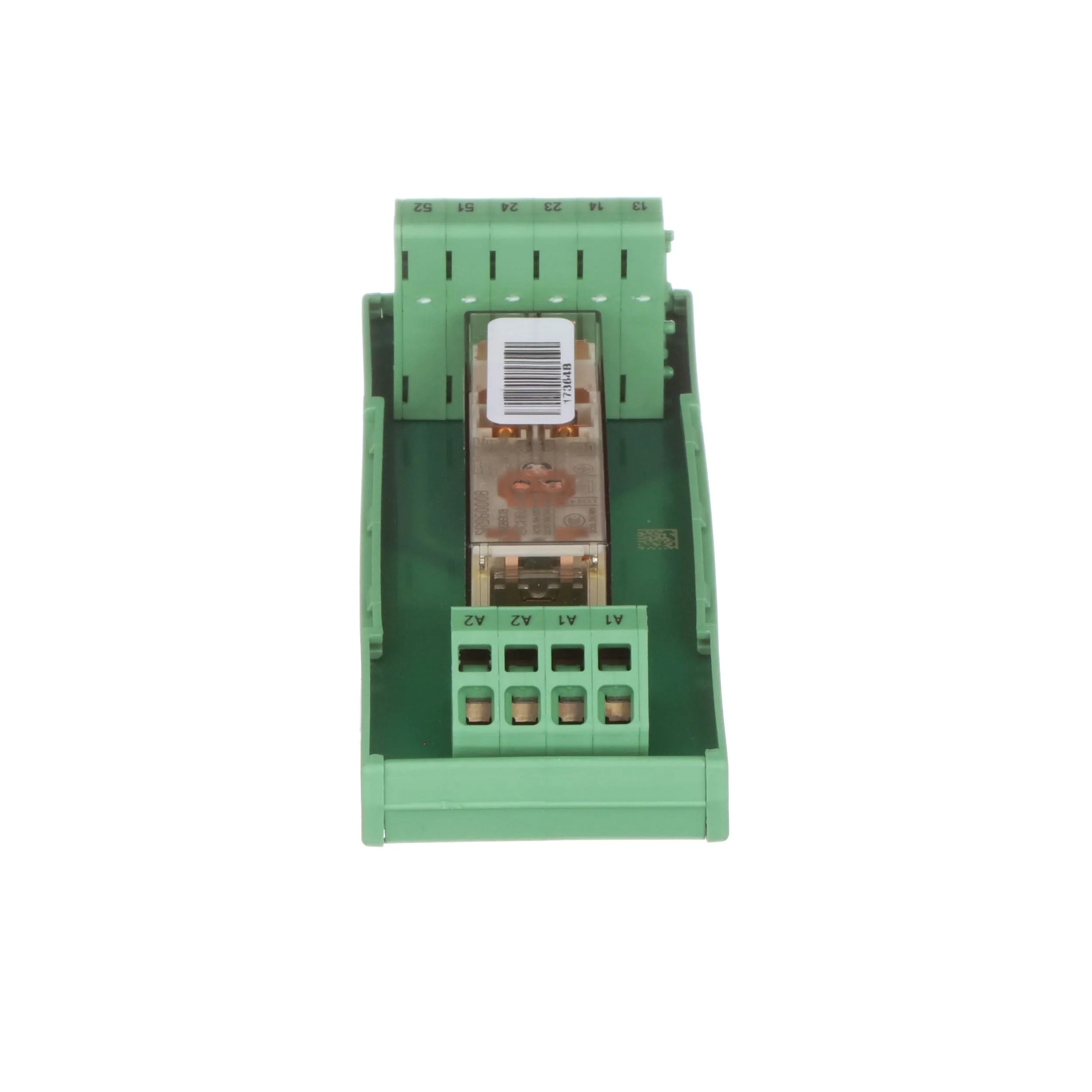

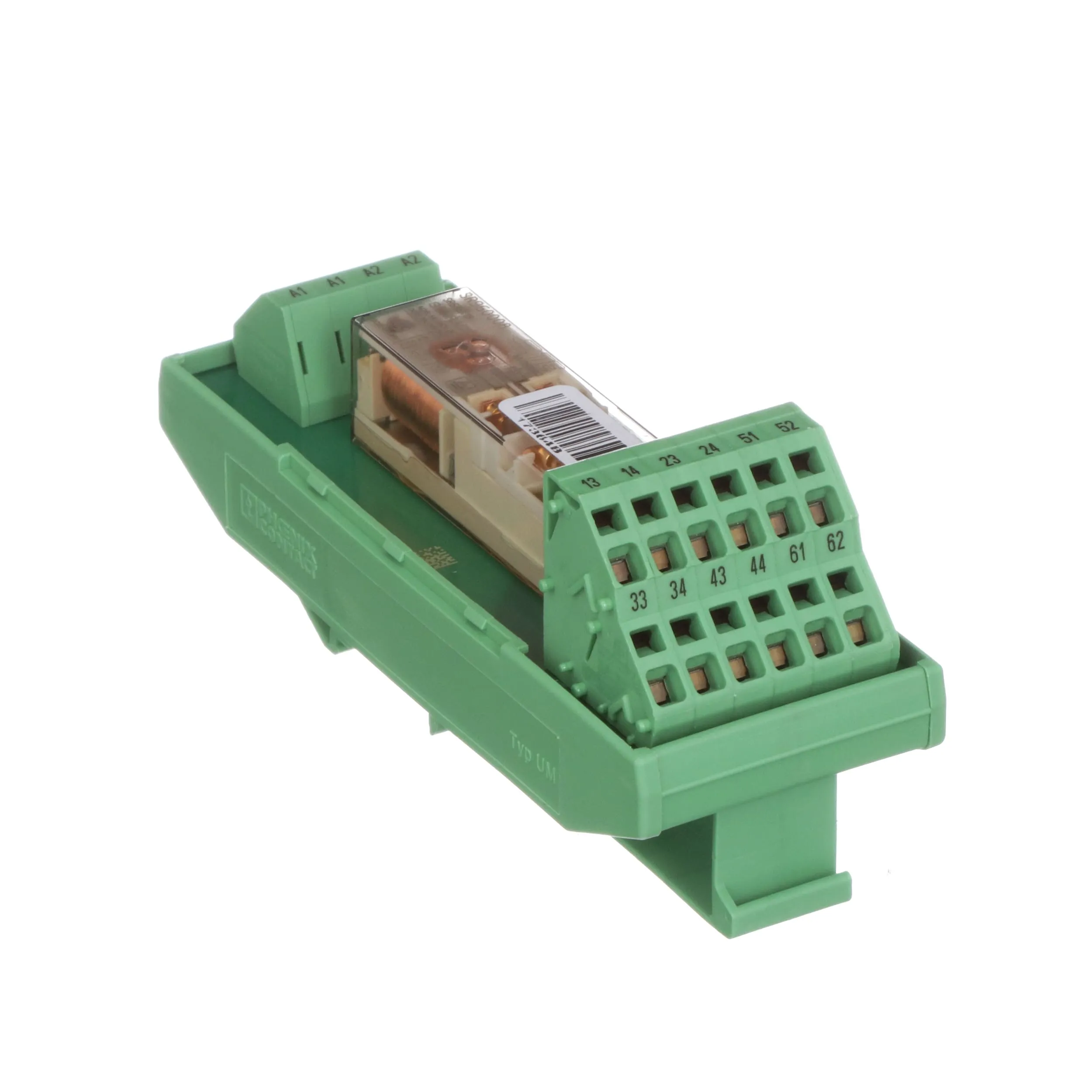

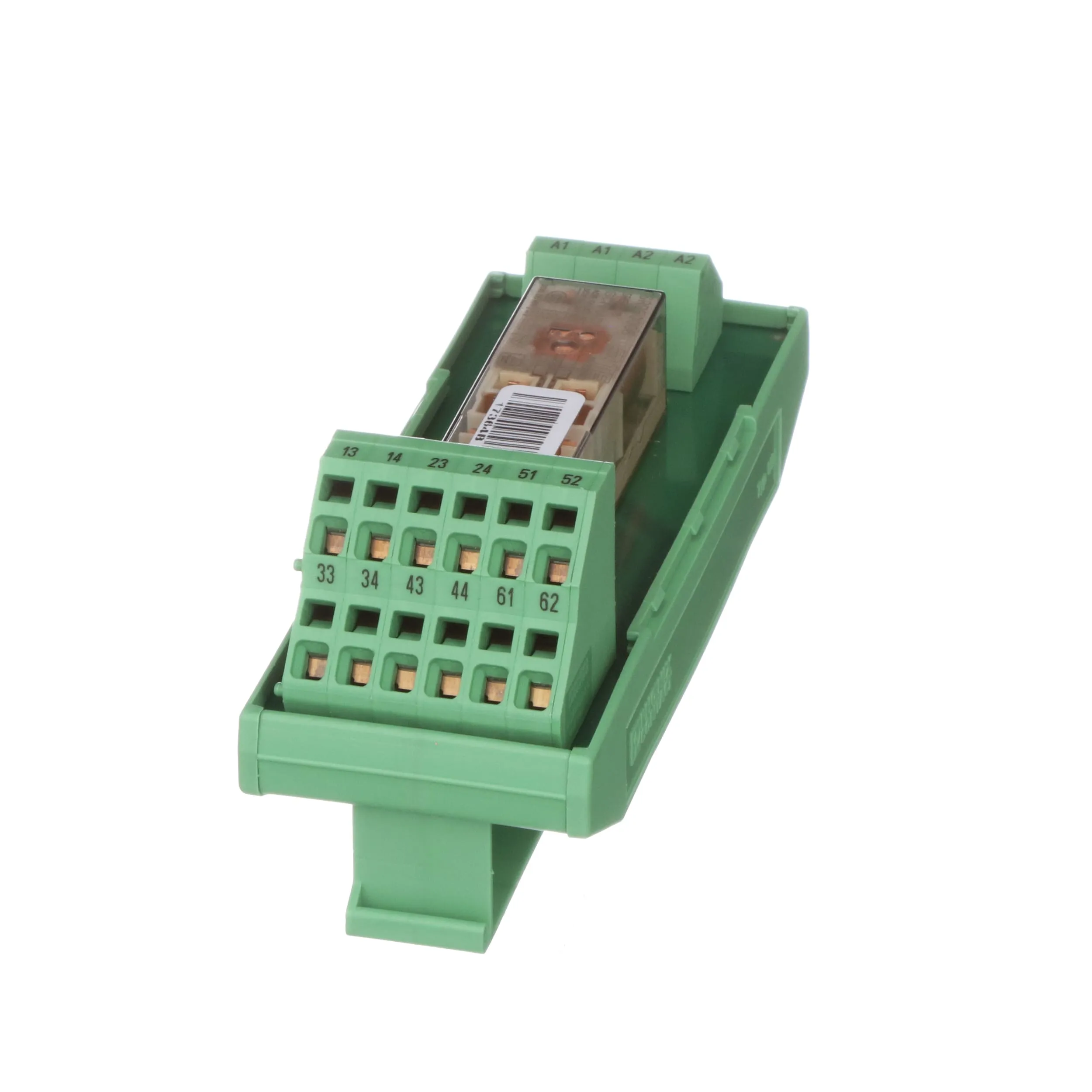

Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | PSR-SPF- 24UC/URM/4X1/2X2 |
| Approvals | UL Listed, cUL Listed, EAC, EAC, cULus Listed |
| Contact Current Rating | 6 A |
| Current Rating | 6 A |
| Depth | 0.079" (2mm) |
| Dimensions | 22.5 x 99 x 114.5 mm |
| Function | Safety |
| Input Type | Voltage |
| Length | 1.574" (40mm) |
| Maximum Operating Temperature | 55 °C |
| Minimum Operating Temperature | -20 °C |
| Mounting Style | DIN Rail |
| Number of Channels | 1 Channel |
| Output Type | Electromechanical |
| Power Rating | 288 VA ; 48 W |
| Product Header | Universal Safety Relay |
| Relay Type | Electro Mechanical |
| Series | |
| Special Features | Equipped with Forcibly Guided Contacts According to EN 50205 ; Like all PSR Safety Relays ; Single-Channel Control |
| Standards | RoHS ; UL ; cULus |
| Supply Voltage | 250 VAC/VDC |
| Temperature Operating Range | -20 to 55 C |
| Terminal Type | Spring Cage |
| Termination | Spring Cage |
| Type | Safety Relay |
| UPC Code | 4017918987794 |
| Voltage Rating | 250 VAC/VDC |
| Voltage, Control | 24 VAC ; 24 VDC |
| Width | 4.37" (111mm) |
Overview
PSRmini and PSRclassic Safety Relays from Phoenix Contact:
Emergency stop, light grid or safety door – the PSRmini and PSRclassic safety relays from Phoenix Contact can be used to implement all safety functions for applications with one function, one device. With our PSRmodular modular safety relay system you can assemble your safety system as required.
Features:
