Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 445101032 |
| Contact Current Rating | 2 (DC-13), 3 (AC-15) A |
| Current Rating | 3 A |
| Depth | 0.118" (3mm) |
| Dimensions | 45 x 99 x 114 mm |
| Function | Safety |
| Input Type | Voltage |
| Length | 3.897" (99mm) |
| Maximum Operating Temperature | 40 °C |
| Minimum Operating Temperature | -15 °C |
| Mounting Style | DIN Rail |
| Number of Channels | 1 Channel ; 2 Channel |
| Number of Outputs | 4 |
| Output Type | Solid State |
| Power Rating | 1 VA |
| Product Header | Dual Channel Safety Monitoring Relay |
| Relay Type | Solid State |
| Series | |
| Standards | C-UL ; EN 60204-1 ; EN 954-1 ; TUV ; UL ; VDE 0113-1 |
| Supply Voltage | 115 VAC |
| Temperature Operating Range | -15 to 40 C |
| Terminal Type | Screw |
| Type | Safety |
| Voltage Rating | 230 VAC |
| Voltage, Control | 115 VAC |
| Width | 0.886" (22.5mm) |
Overview

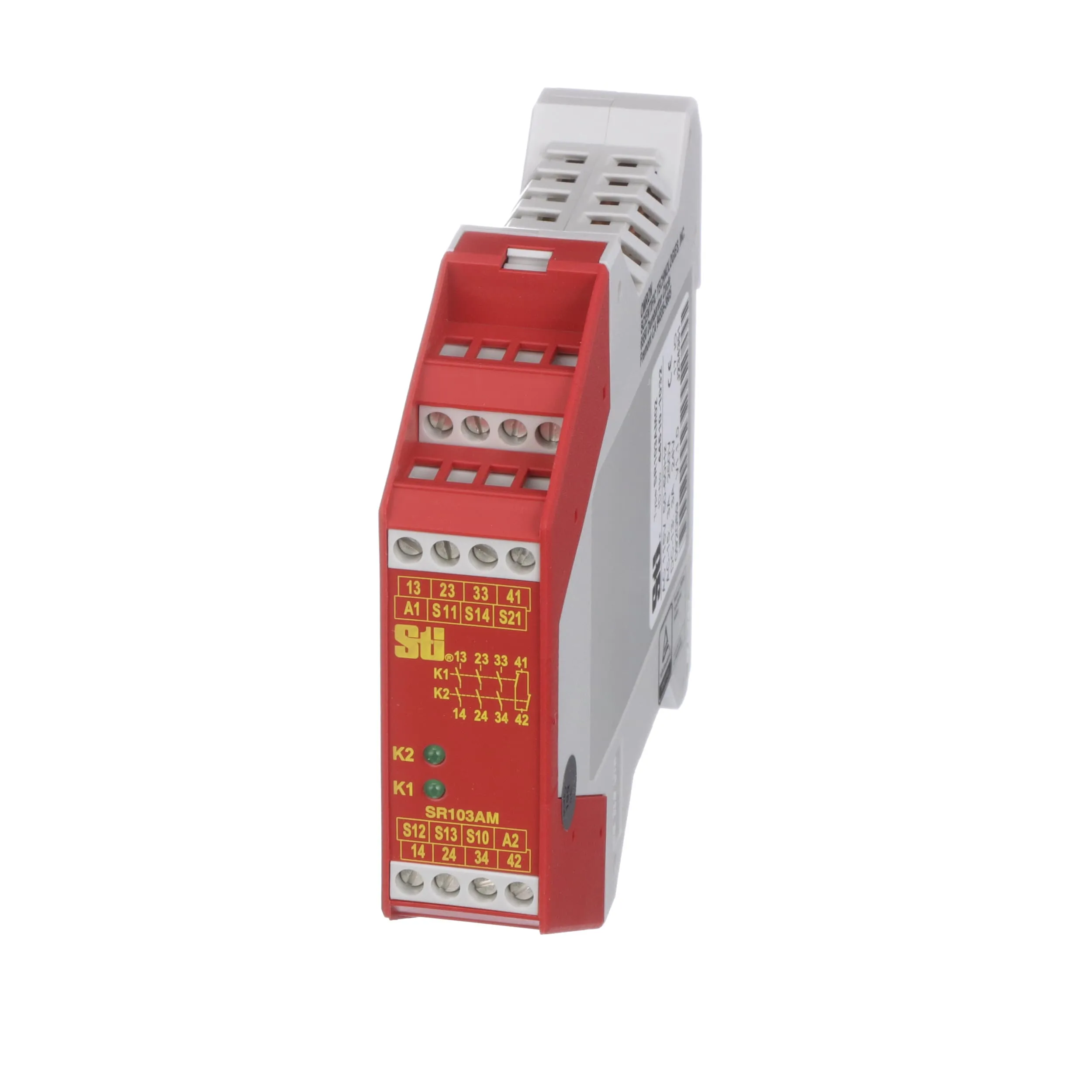

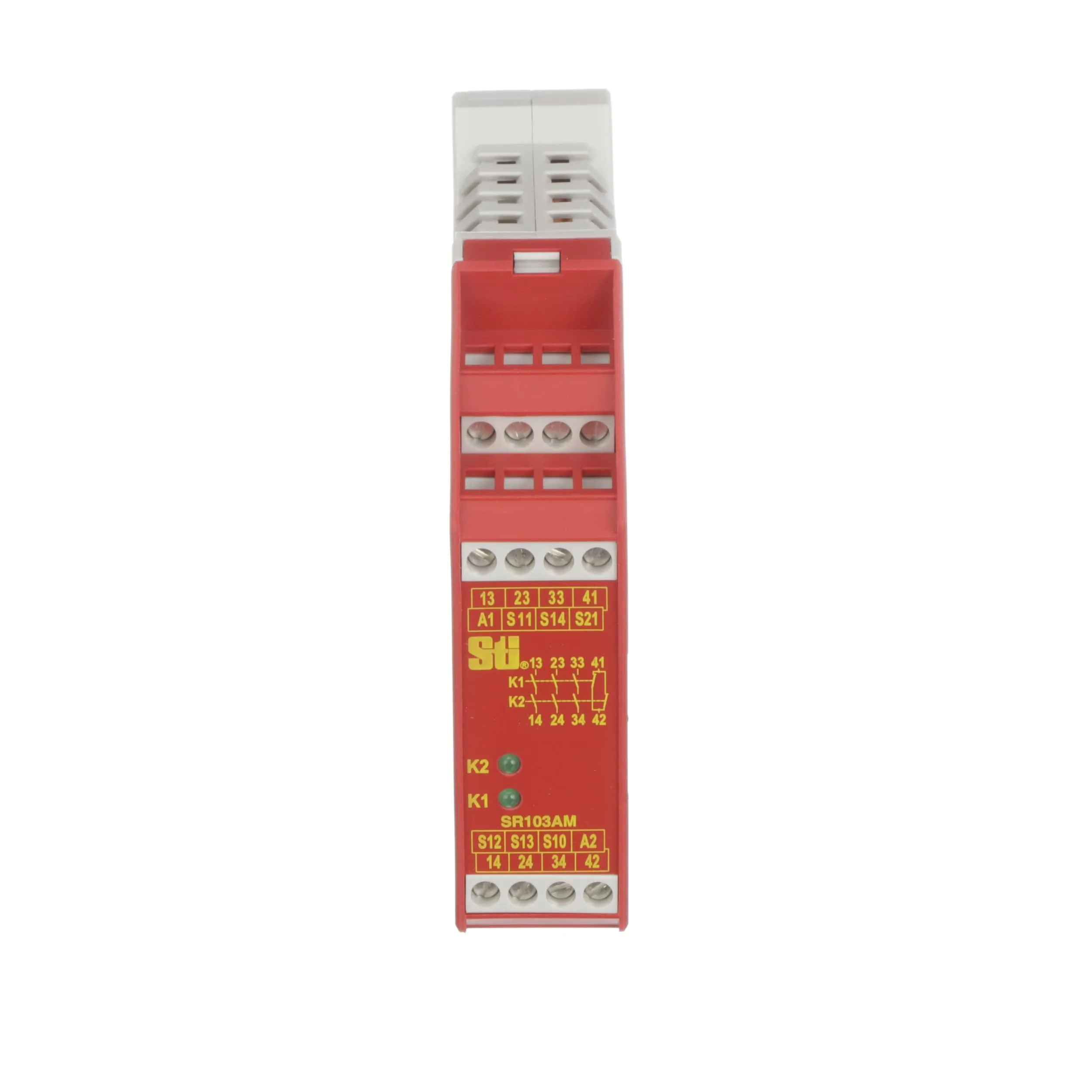

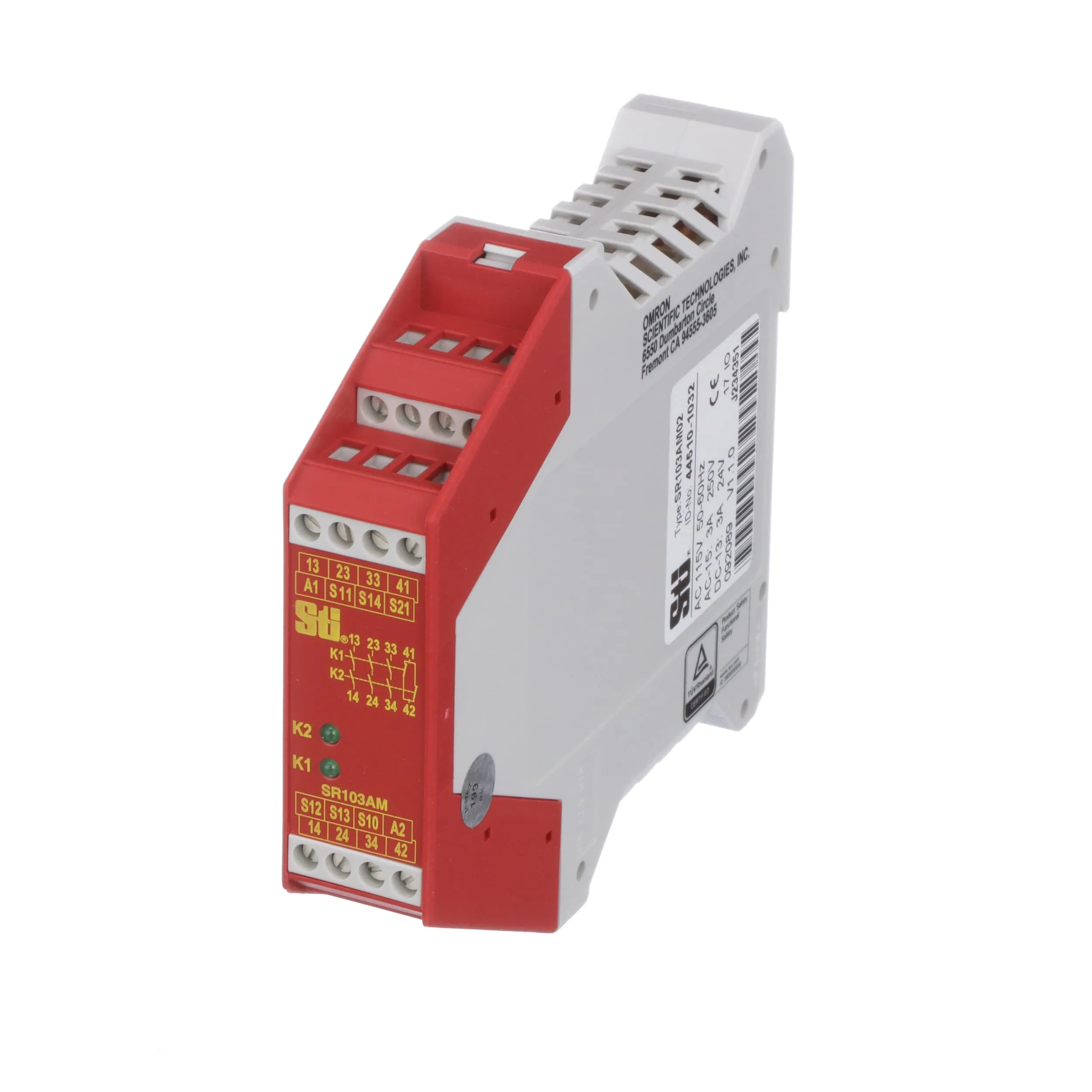

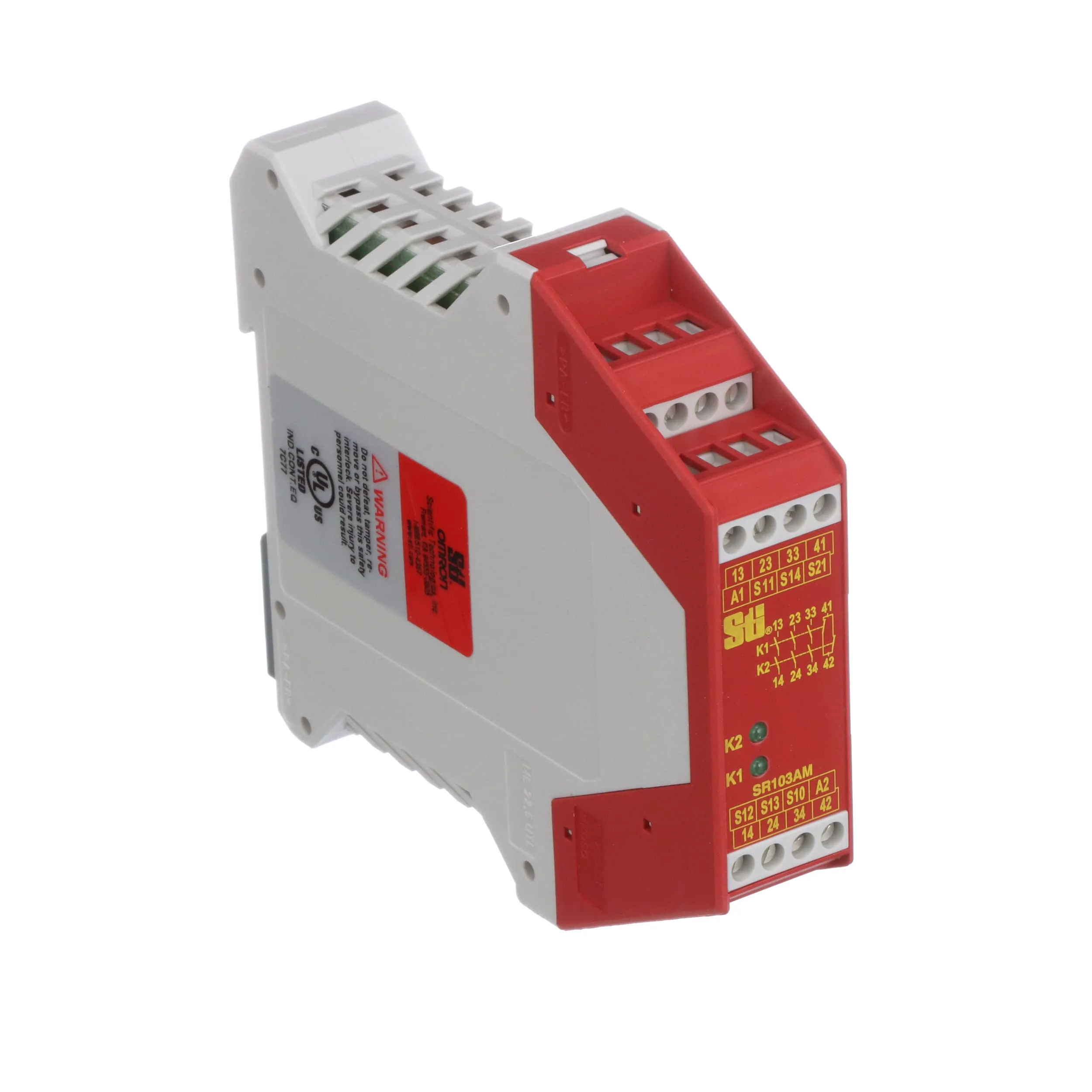

SR103AM Dual-Channel. Power Requirements: The SR103AM will accept 24 VAC/VDC, 115 VAC, or 230 VAC. Inputs: The SR103AM will accept single or dual NC inputs or dual inputs from a light curtain (see SR102AM for application wiring for a light curtain). Outputs: The SR103AM has 3 NO outputs to route power to the coils of power contacts, plus 1 NC auxiliary output for signaling purposes. External Device Monitoring (EDM) is provided with a NC loop between S11/S12 and S21 on the SR103AM. Monitored manual or automatic/manual reset modes are available on the SR103AM.
