Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Depth | 0.197" (5mm) |
| Dimensions | 45 x 99 x 114 mm |
| Enclosure Rating | IP20 (Terminal), IP40 (Housing) |
| Input Type | Voltage |
| Length | 0.885" (22.5mm) |
| Maximum Operating Temperature | 55 °C |
| Minimum Operating Temperature | -10 °C |
| Mounting Style | DIN Rail |
| Number of Channels | 4 Channel |
| Number of Outputs | 4 |
| Number of Poles | 4 |
| Power Rating | 2.2 W |
| Series | |
| Special Features | Removable Terminal Block Enables Easy Replacement ; Simple Wiring Procedure |
| Standards | CSA Certified ; UL Listed |
| Supply Voltage | 24 VDC |
| Temperature Operating Range | -10 to 55 C |
| Terminal Type | Plug-In |
| Termination | Plug-In |
| Type | Safety Relay |
| Voltage Rating | 24 VDC |
| Width | 4.37" (111mm) |
Overview

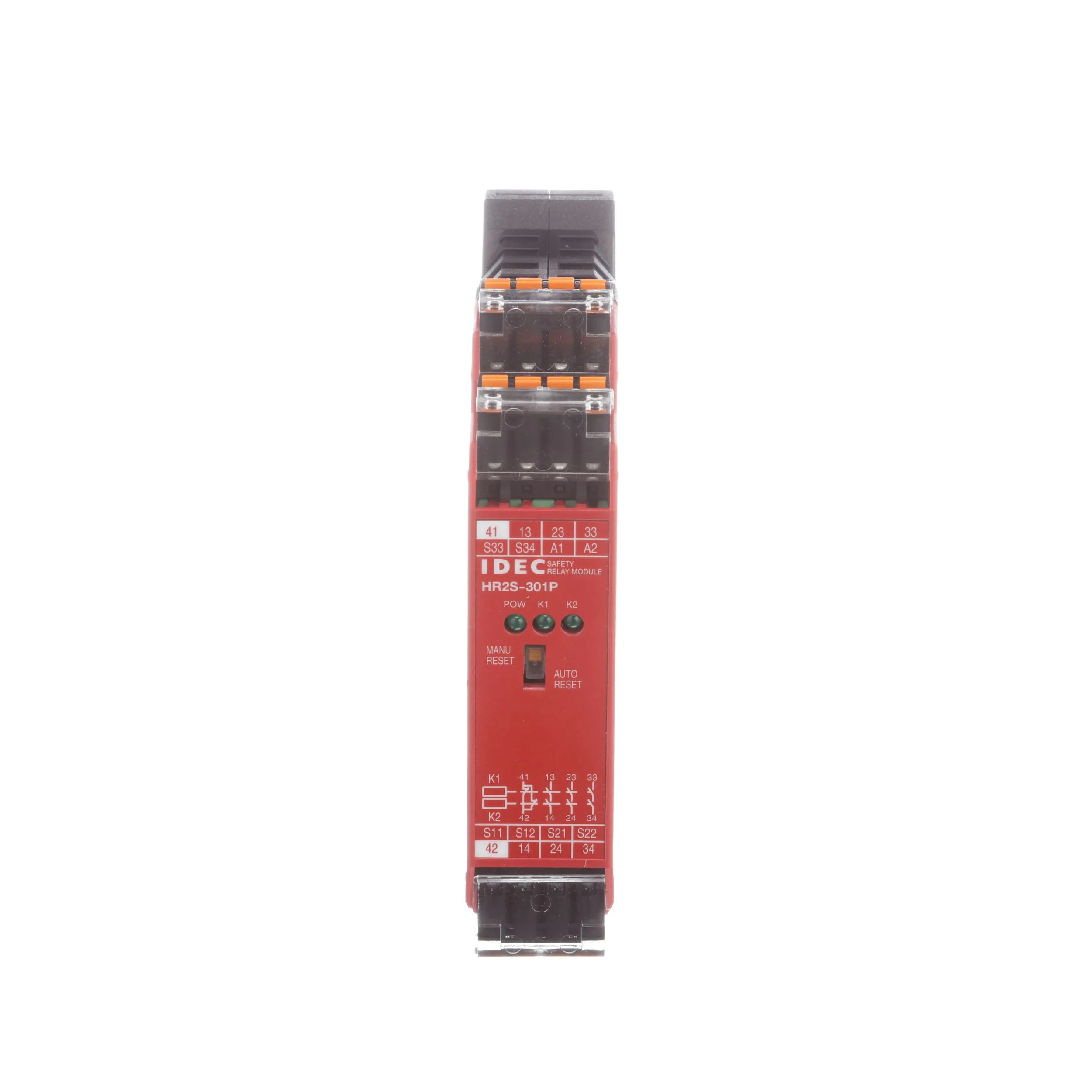

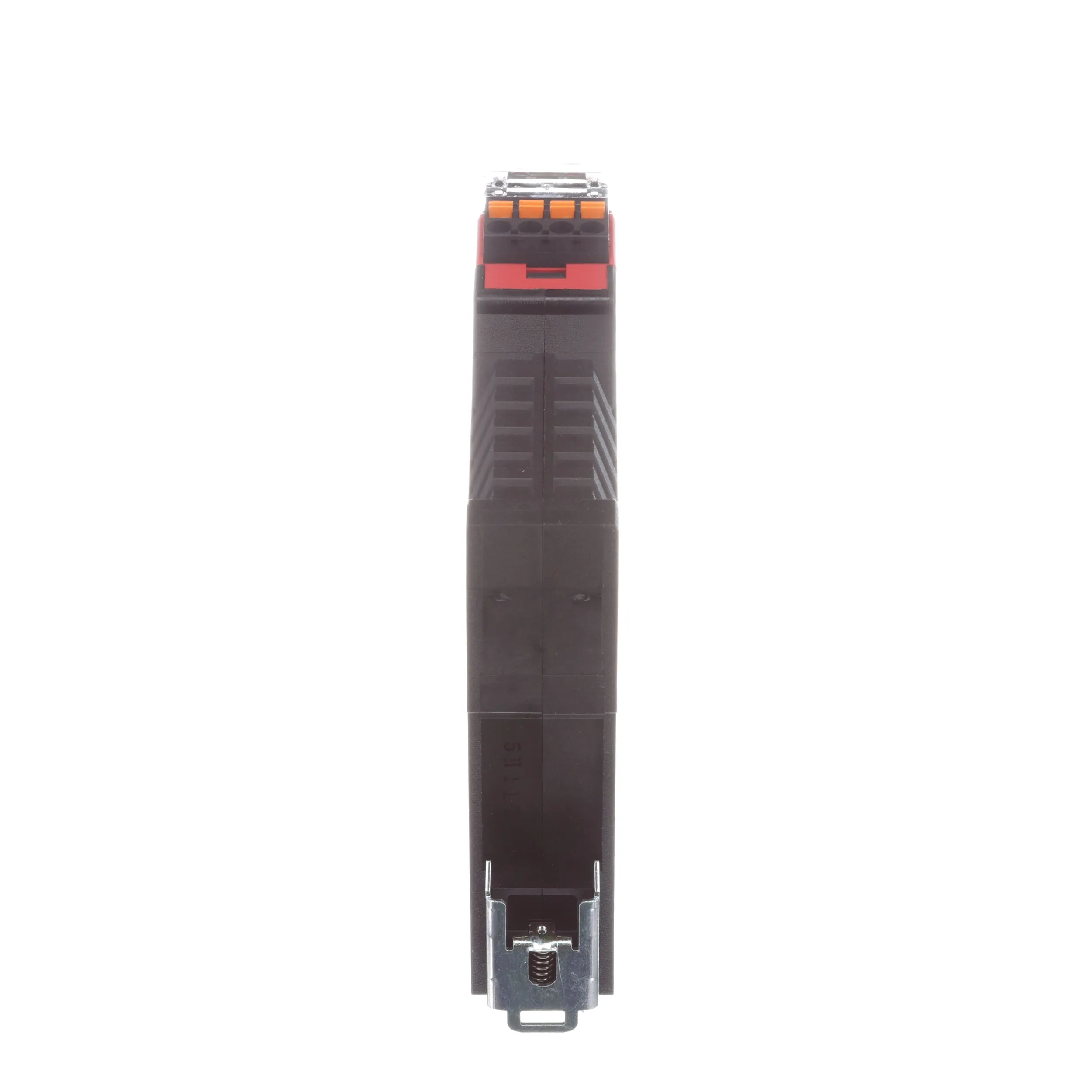

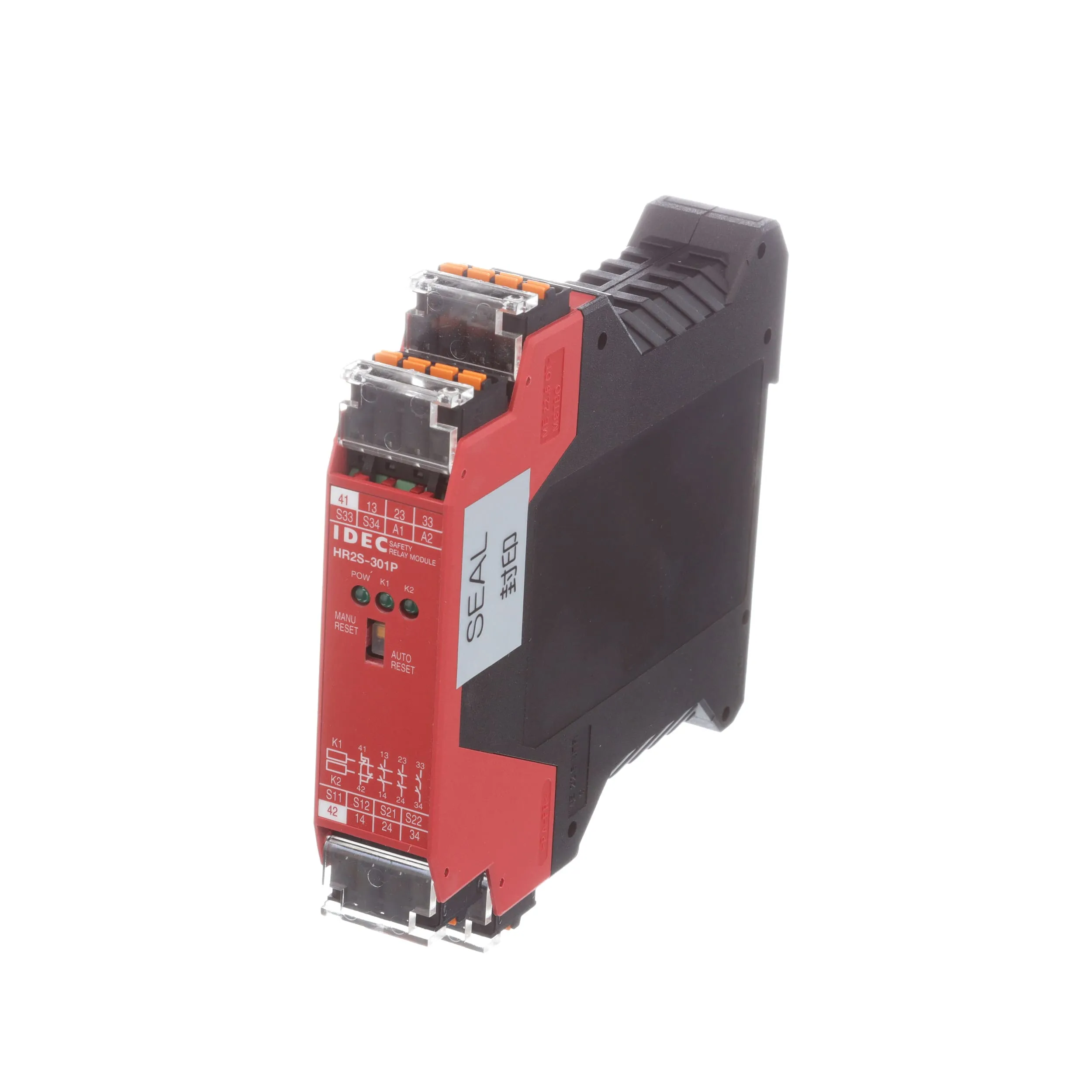

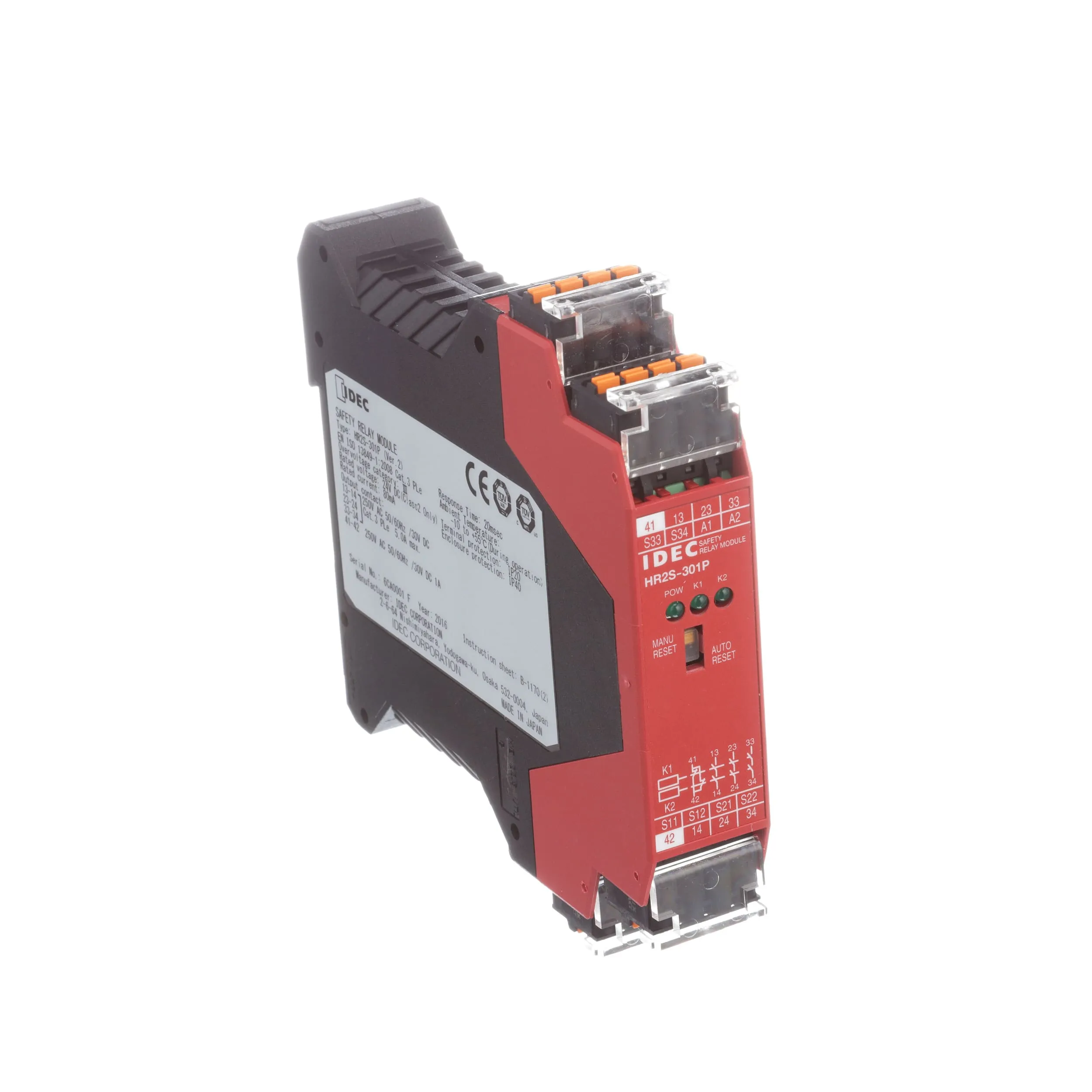

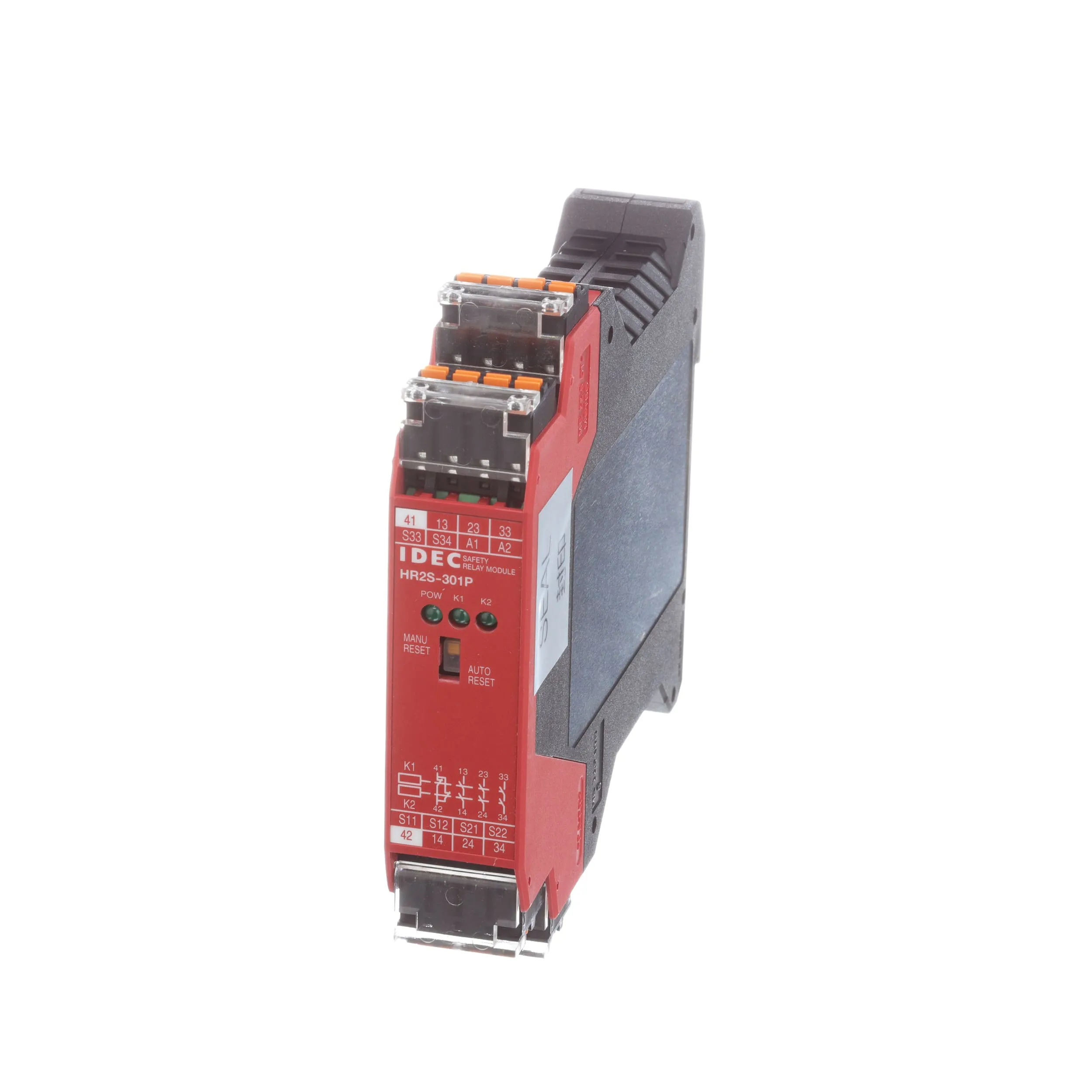

The HR2S series safety relays provide users increased functionality and flexibility when designing sytem to meet safety requirements. HR2S safety relays are compact modules designed to allow machine operation only when all safety controls such as Interlock Switches, E-stop switches, Light Curtains, etc. are functioning properly and aren’t reporting hazardous conditions. The HR2S feature removable terminals for easy wiring and installation, and time delay circuit.
