Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Current Rating | 25 A |
| Current, Supply | 20 mA |
| Depth | 0.197" (5mm) |
| Dimensions | 72 x 113.5 x 114.5 mm |
| Family Name | SafetyOne Family |
| For Use With | Micro Smart Pentra Series PLC |
| Input Type | Voltage |
| Input Voltage | 24 VDC |
| Length | 2.834" (72mm) |
| Maximum Operating Temperature | 55 °C |
| Minimum Operating Temperature | -10 °C |
| Mounting Style | DIN Rail |
| Number of Inputs | 16 |
| Number of Outputs | 16 |
| Output Type | Relay |
| Power Dissipation | 48W (at the rated power voltage, when all I/Os are ON) (incl. output load) |
| Power Rating | 48 W |
| Primary Type | Controller |
| Series | |
| Special Features | Configuration by Logic Switch, Multi Function Safety Relay, One Safety Module, Solenoid Drive Output |
| Standards | CE Certified, TUV Marked, UL Approved, cUL Recognized |
| Supply Voltage | 24 VDC |
| Temperature Operating Range | -10 to 55 °C |
| Terminal Type | Spring Clamp |
| Termination | Spring Clamp Connector |
| Type | PLC |
| Width | 4.469" (113.5mm) |
Overview

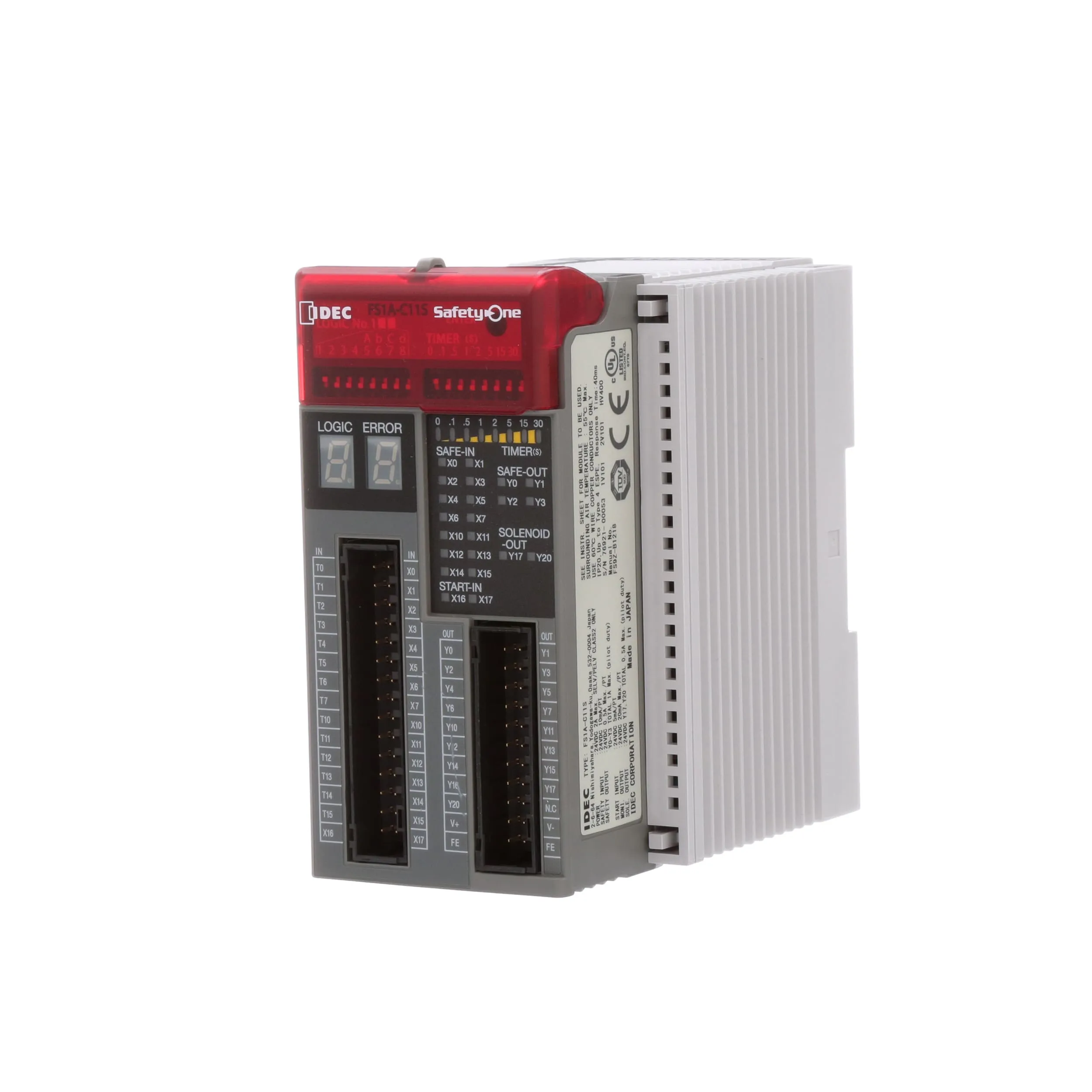

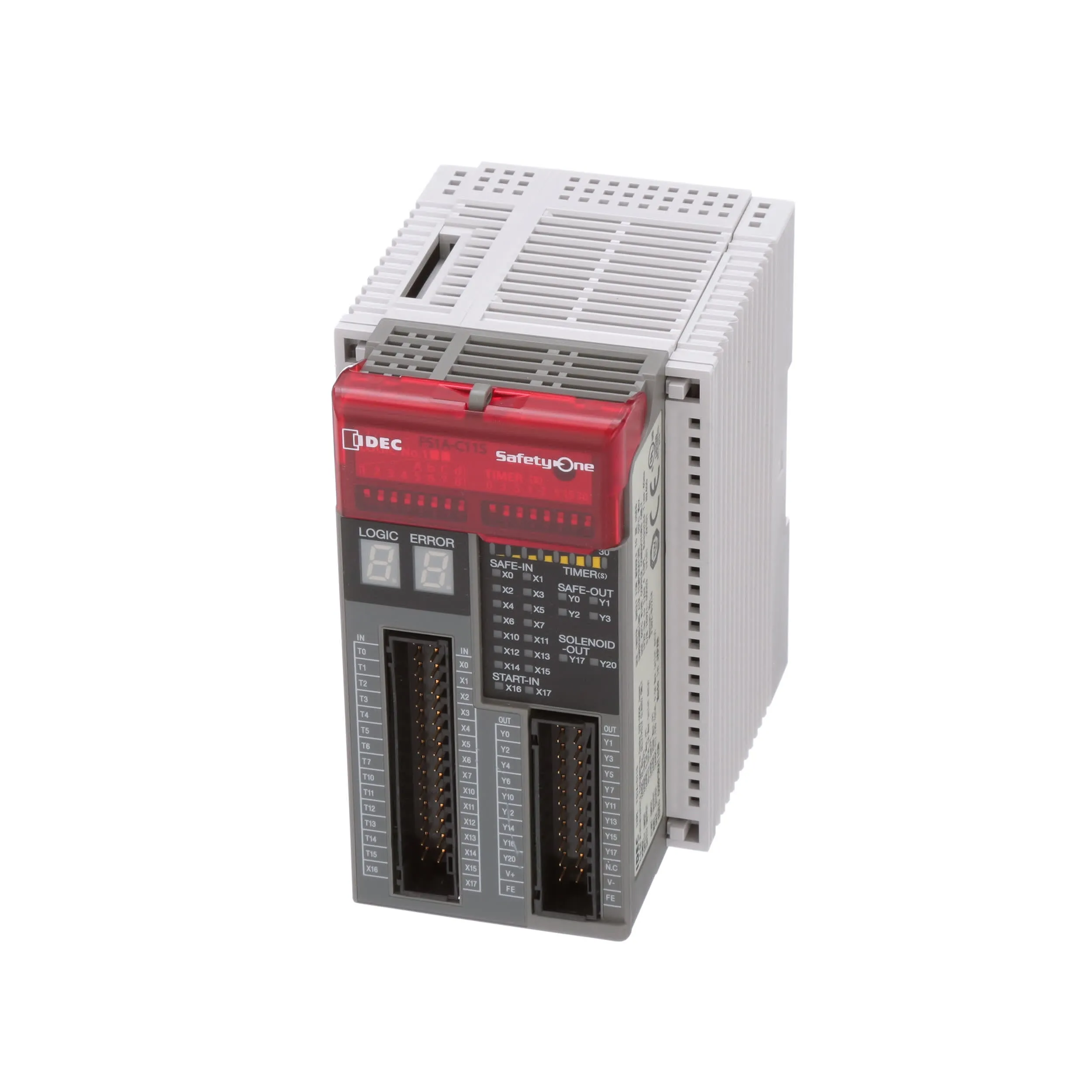

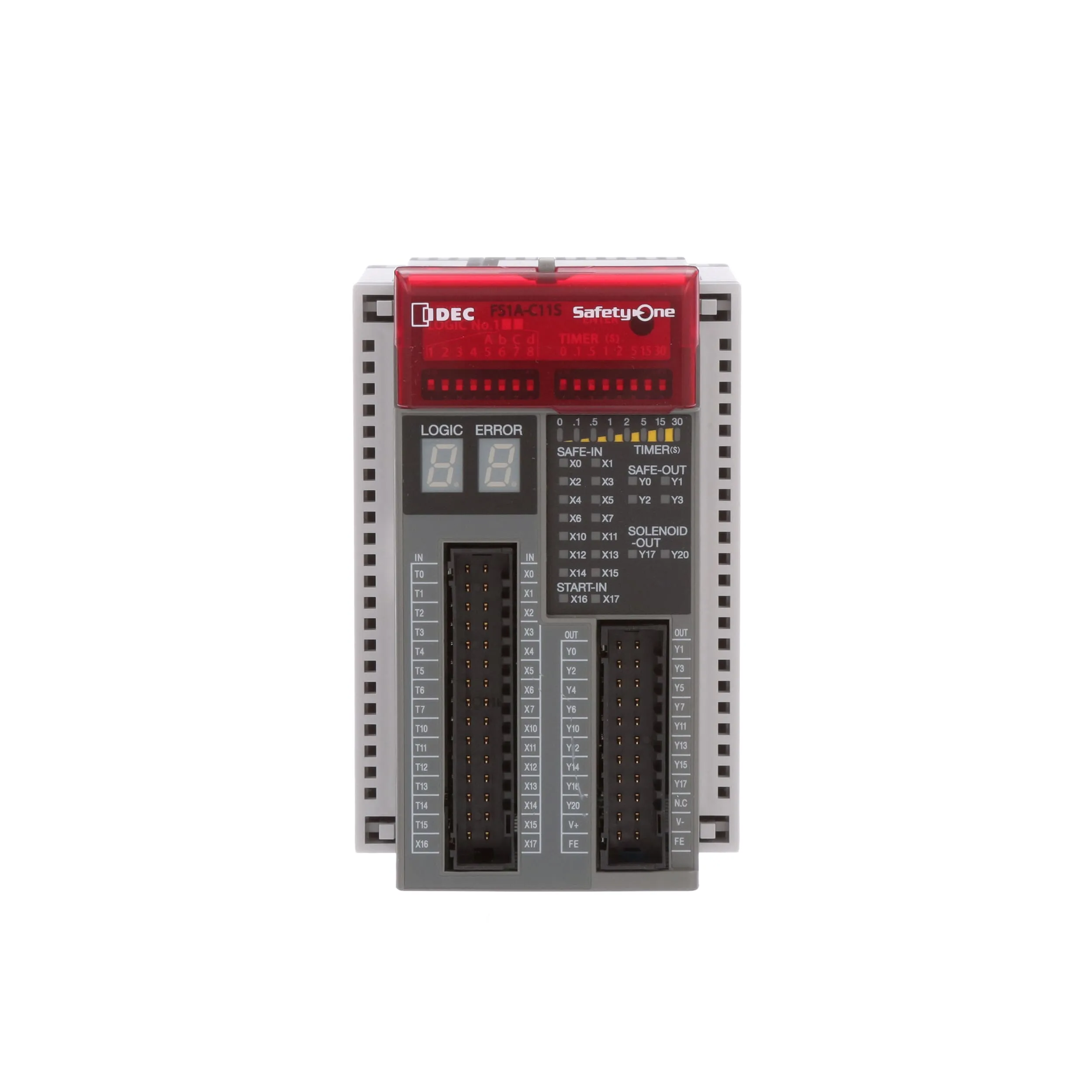

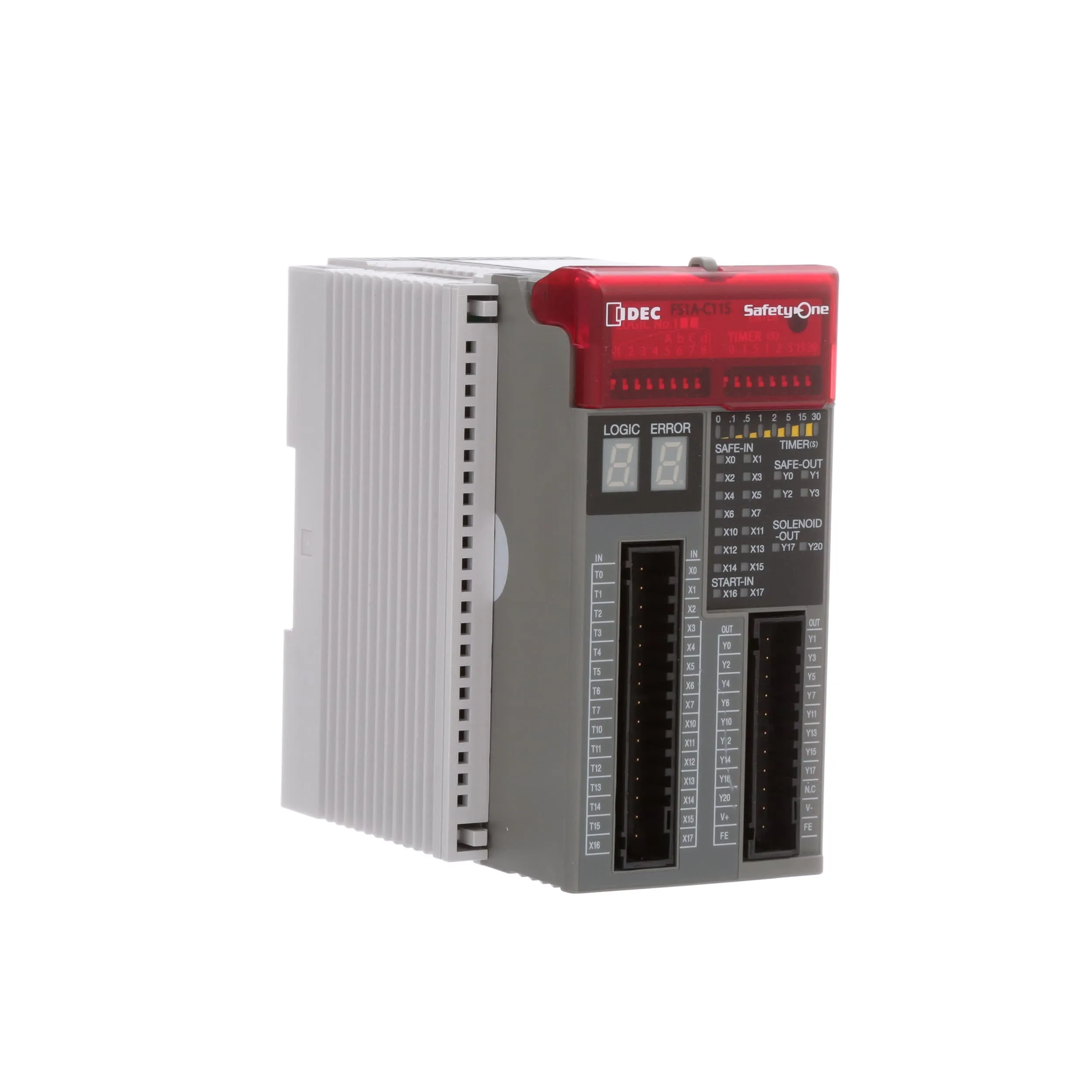

IDEC SafetyOne Family | FS1A Series — Multi-function Safety Relay:
The FS1A series of SafetyOne controllers provides safeguarding measures for various factory automation equipment and systems, including robots, production machinery, semiconductor manufacturing apparatus, food packaging machinery, and printing machinery. You can easily configure the safety circuits by using multiple safety inputs and outputs and selecting the circuit (logic) built into the SafetyOne.
Family Features:
